Jig Saw Blade

Chinese professional manufacturer of jig saw blades

Our company produce and supply a variety of HCS jigsaw blades and HSS jigsaw blades.

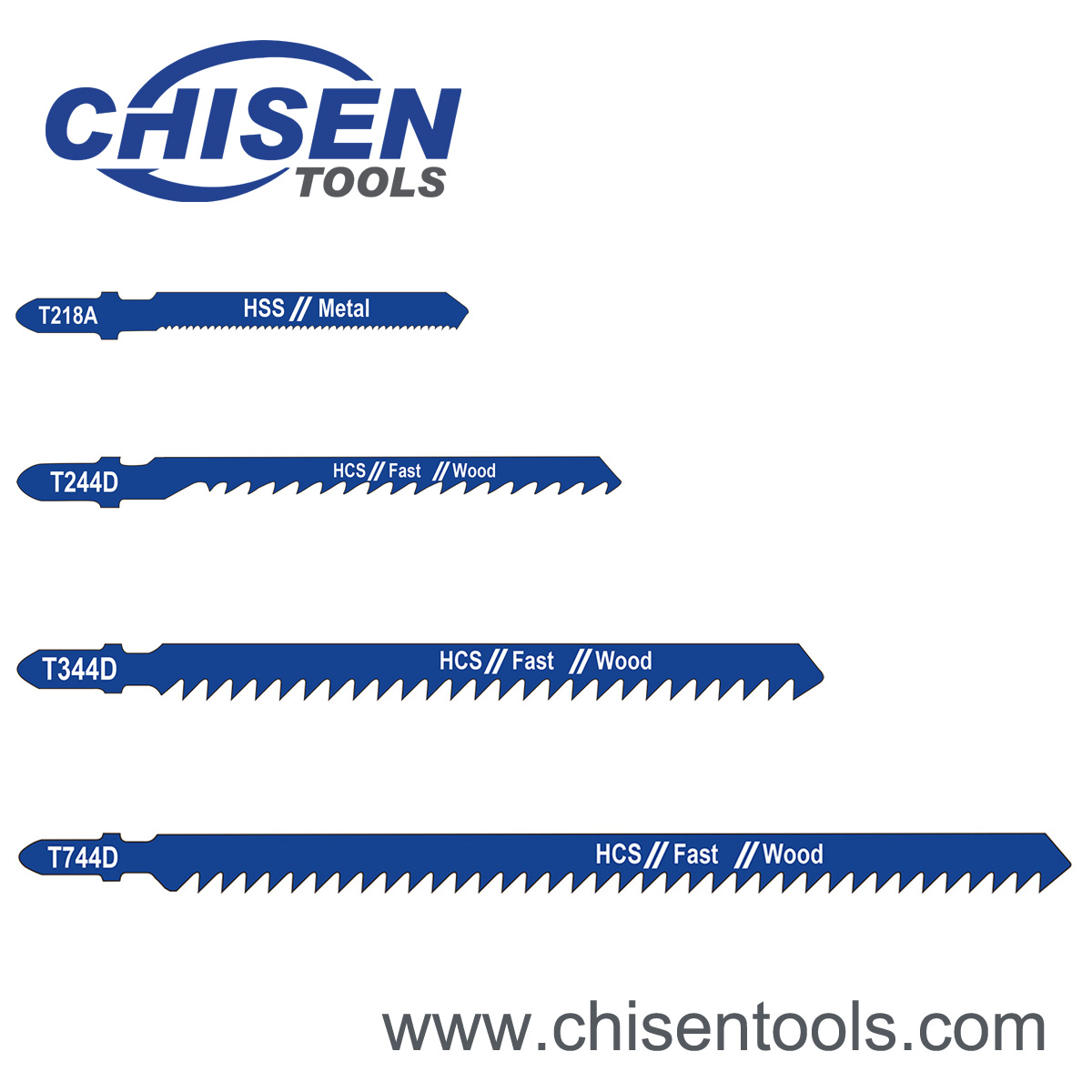

T-shank jig saw blades

FITS: BOSCH®, METABO®, DEWALT®, MAKITA®, AEG®, FESTO®, HOLZHER®, KRESS®, ELU®, SKIL®.

Item No.	Model	Material	Teeth per Inch	Teeth Pitch	Total Length	Tooth Spacing	Tooth Geometry	Application

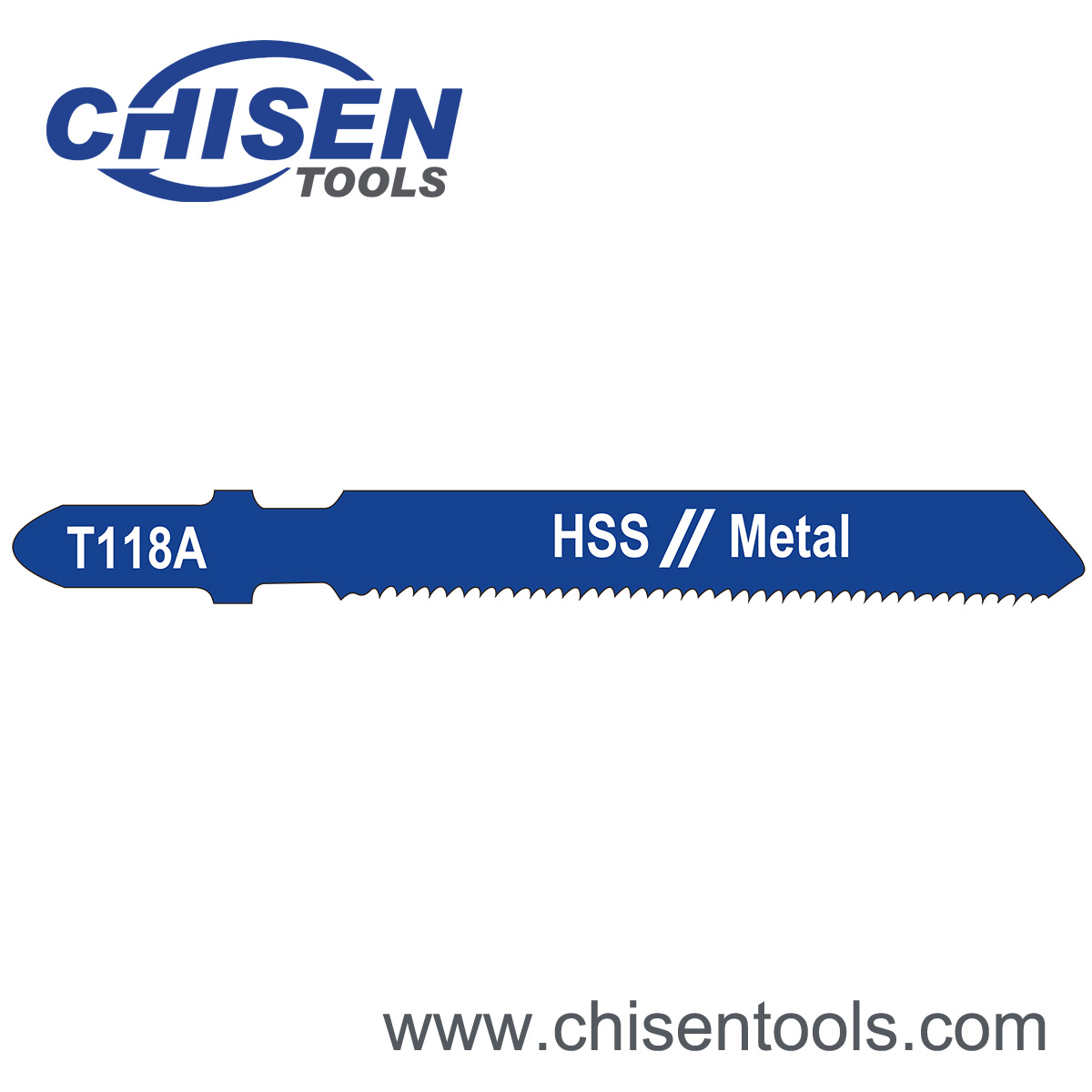

CS048501	T118A	HSS	21 TPI	1.2mm	76mm 3"	50mm 2"	Wavy Set	Thin sheet metal (1~3mm)

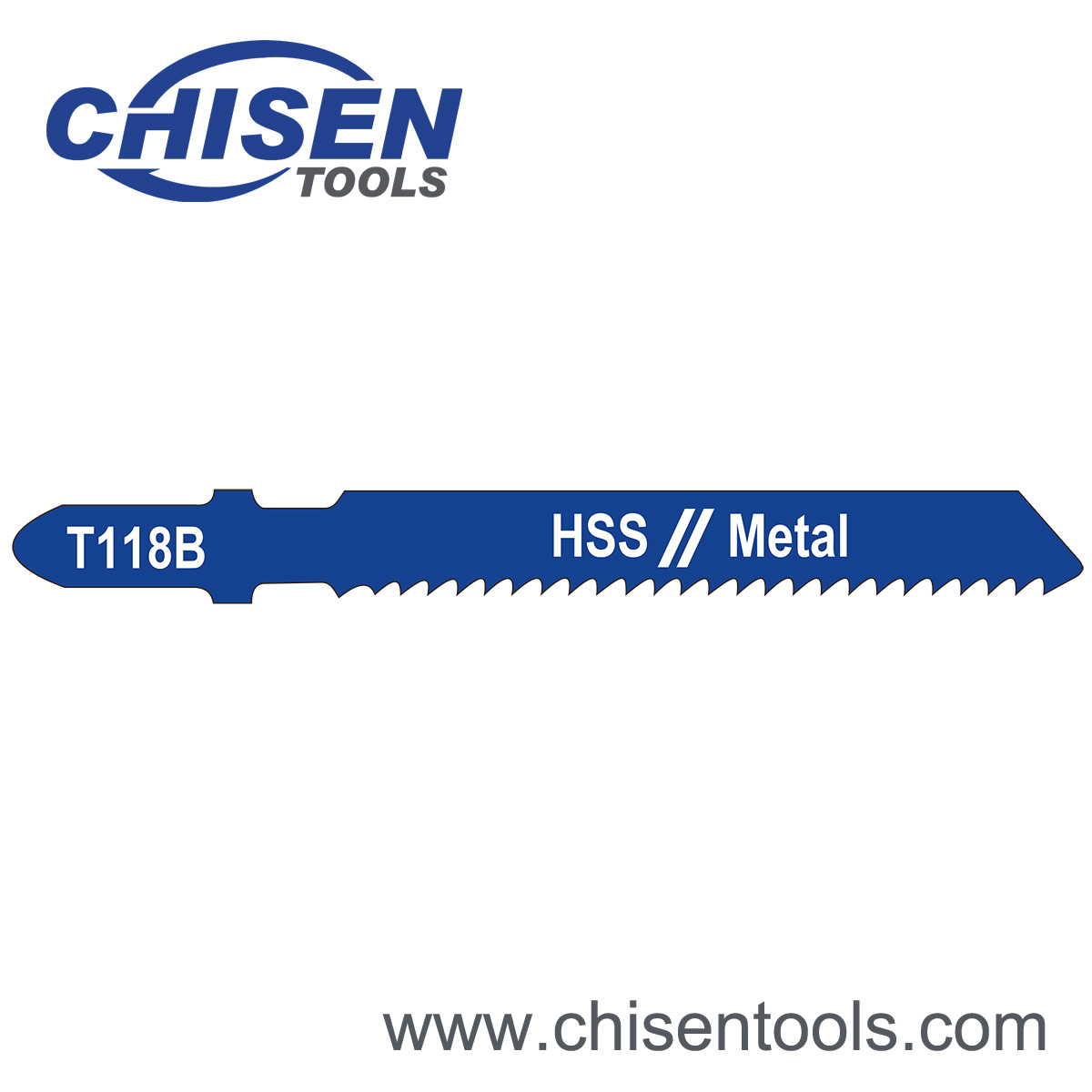

CS048502	T118B	HSS	12 TPI	2.0mm	76mm 3"	50mm 2"	Wavy Set	Medium thick sheet metal (2.5~6mm)
CS048503	T118G	HSS	32 TPI	0.8mm	76mm 3"	50mm 2"	Wavy Set	Medium thick sheet metal (2.5~6mm)

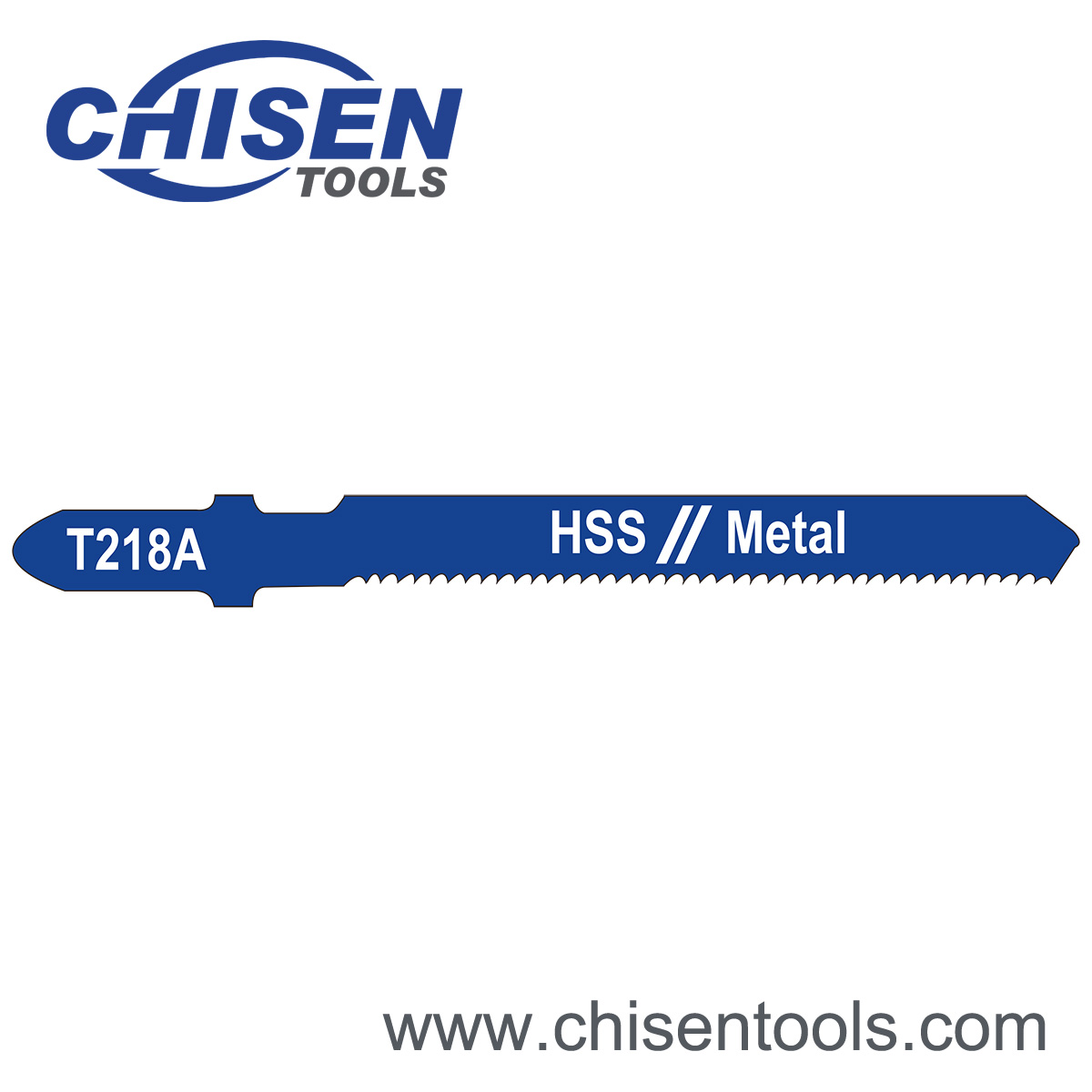

CS048504	T218A	HSS	21 TPI	1.2mm	76mm 3"	50mm 2"	Wavy Set	Thin sheet metal (1~3mm) Especially for curve cuts.
CS048505	T218B	HSS	12 TPI	2.0mm	76mm 3"	50mm 2"	Wavy Set	Thin sheet metal (1~3mm) Especially for curve cuts.

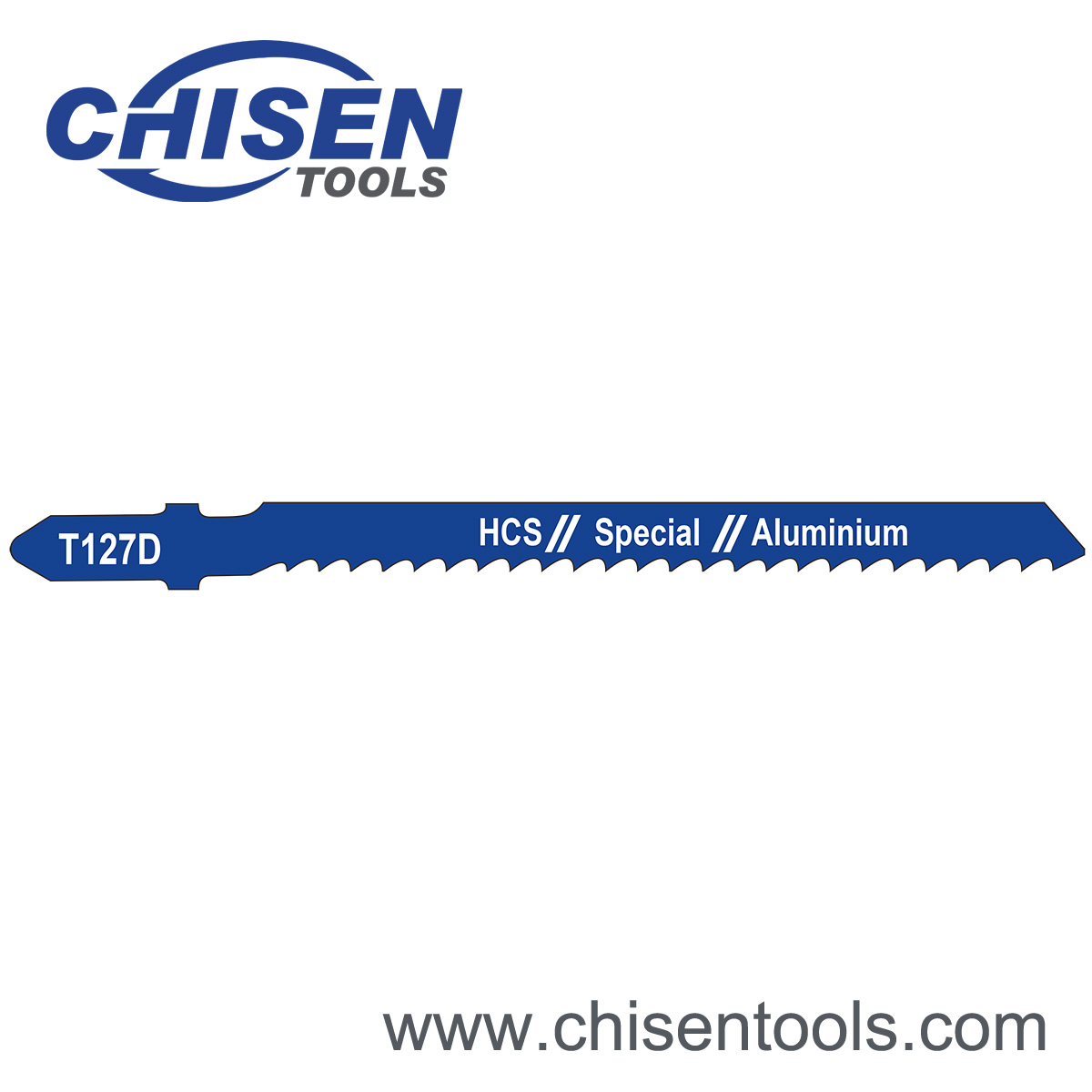

CS048506	T127D	HSS	8 TPI	3.0mm	100mm 4"	75mm 3"	Side Set	Thin to thick sheet metal (3~15mm), pipe + profiles (diameter <30mm). Especially for curve cuts.
CS048507	T127D	HSS	8 TPI	3.0mm	100mm 4"	75mm 3"	Side Set	Thin to thick sheet metal (3~15mm), pipe + profiles (diameter <30mm). Especially for curve cuts.
CS048508	T318A	HCS	21 TPI	1.2mm	132mm 5-1/2"	110mm 4-1/2"	Wavy Set	Thick construction trimer, softwood (5~50mm), chipboards, wood core plywood, fiberboards.
CS048509	T318B	HCS	12 TPI	2.0mm	132mm 5-1/2"	110mm 4-1/2"	Wavy Set	Thick construction trimer, softwood (5~50mm), chipboards, wood core plywood, fiberboards.

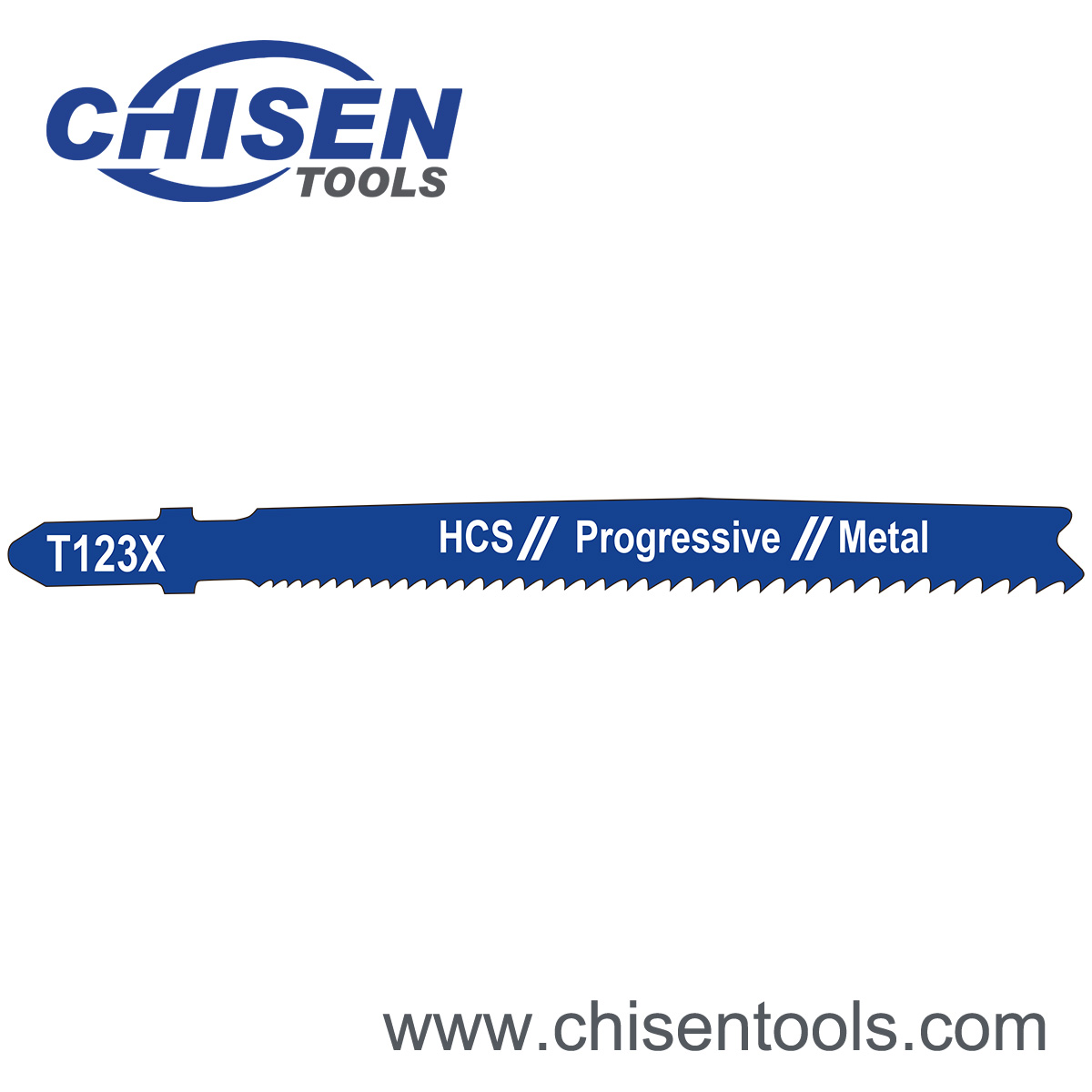

CS048510	T123X	HSS	21 TPI	1.2mm	100mm 4"	75mm 3"	Wavy Set	Thin to thick metal plate (1.5~10mm), pipes + profiles. Aluminium (diameter <30mm)
CS048511	T101A	HSS	21 TPI	1.2mm	100mm 4"	75mm 3"	Wavy Set	Thin to thick metal plate (1.5~10mm), pipes + profiles. Aluminium (diameter <30mm)

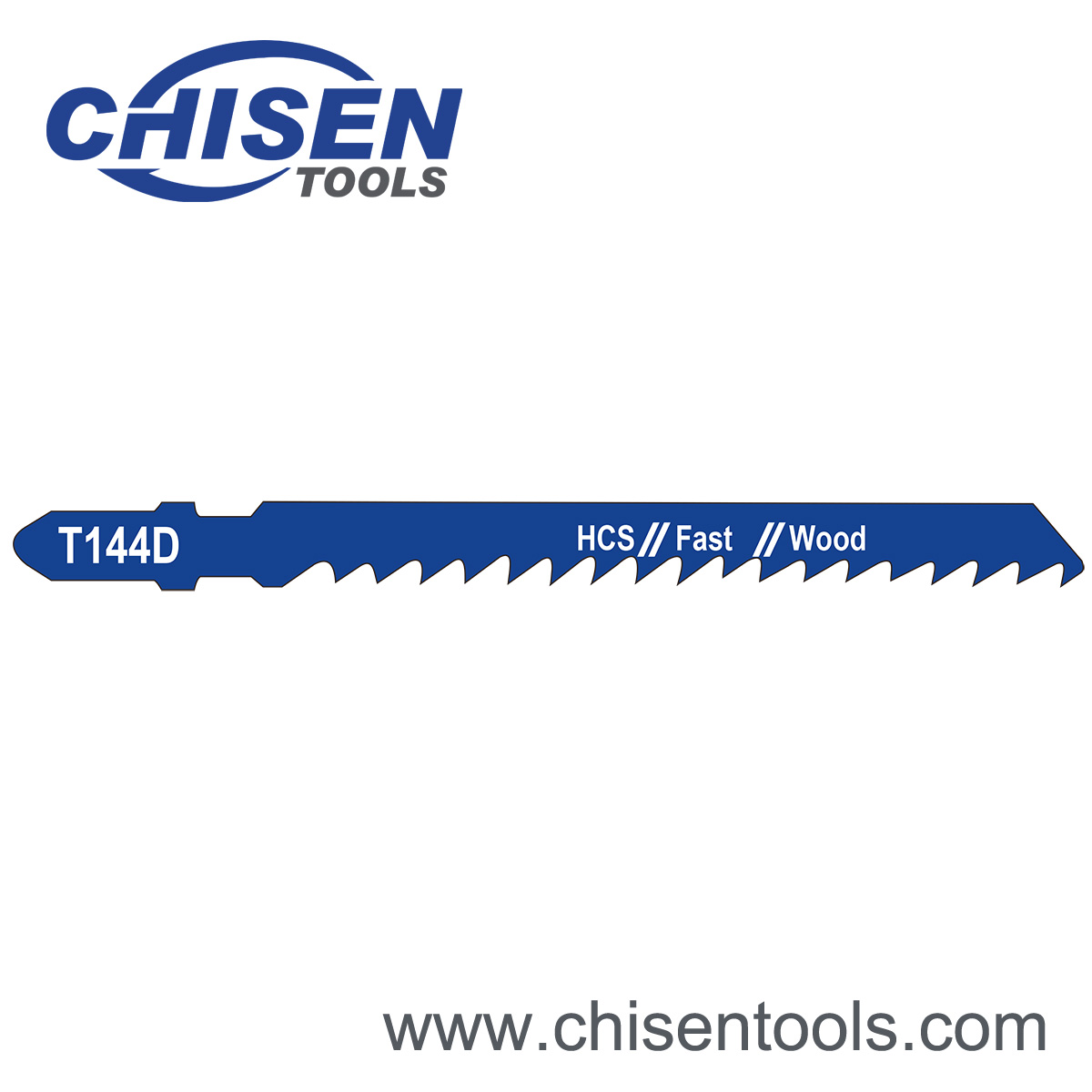

CS048531	T144D	HCS	6 TPI	4.0mm	100mm 4"	75mm 3"	Diagonally Sharpened	Softwood (5~50mm), chipboards, wood core plywood, fiberboards.

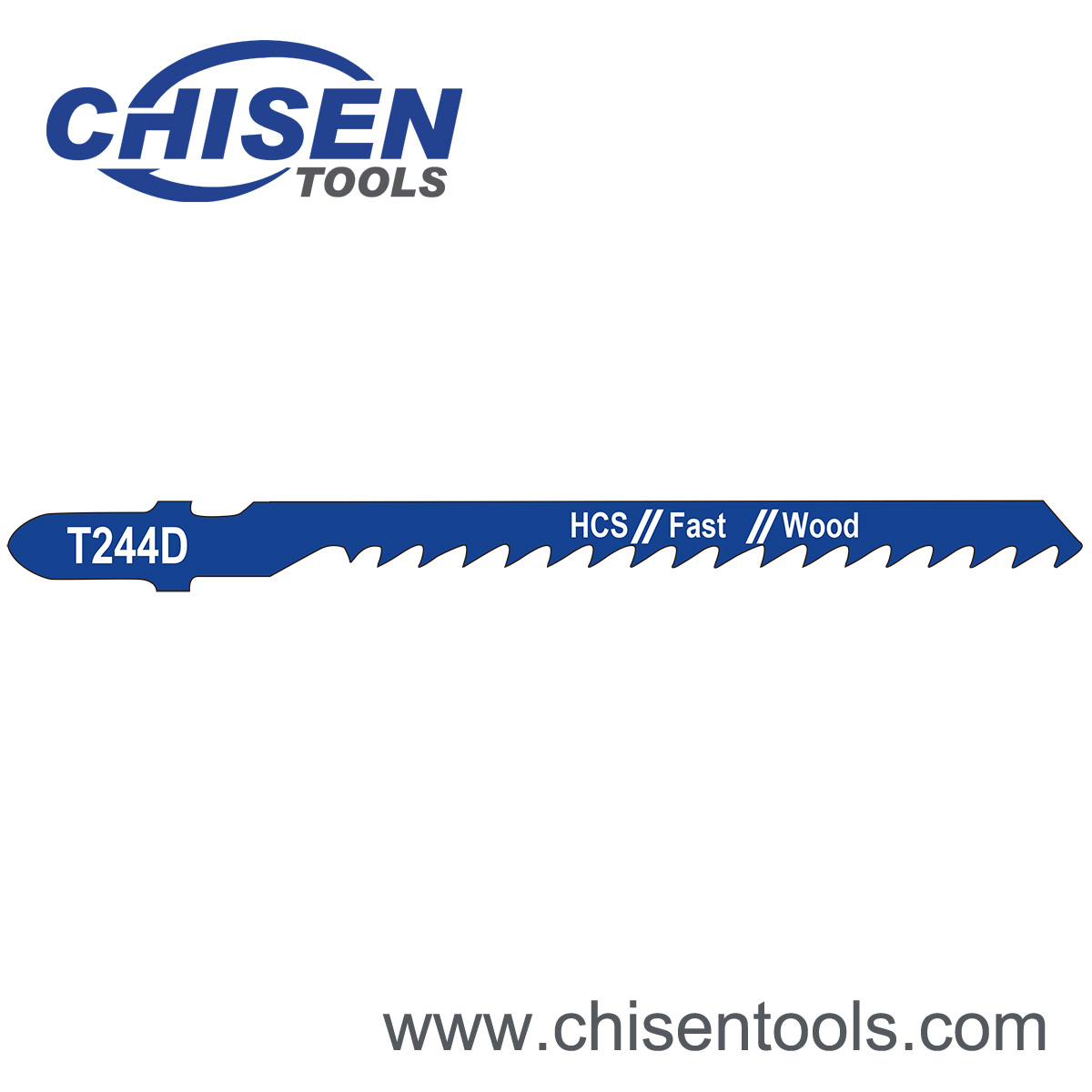

CS048532	T244D	HCS	6 TPI	4.0mm	100mm 4"	75mm 3"	Diagonally Sharpened	Softwood (5~50mm), chipboards, wood core plywood, fiberboards. Especially for curve cuts.
CS048533	T144DP	HCS	6 TPI	4.0mm	100mm 4"	75mm 3"	Diagonally Sharpened	Softwood (5~50mm), chipboards, wood core plywood, fiberboards.
CS048534	T344D	HCS	6 TPI	4.0mm	132mm 5-1/2"	110mm 4-1/2"	Diagonally Sharpened	Thick construction trimer, softwood (5~50mm), chipboards, wood core plywood, fiberboards.
CS048535	T544D	HCS	6 TPI	4.0mm	152mm 6"	125mm 5"	Diagonally Sharpened	Softwood (5~50mm), chipboards, wood core plywood, fiberboards.

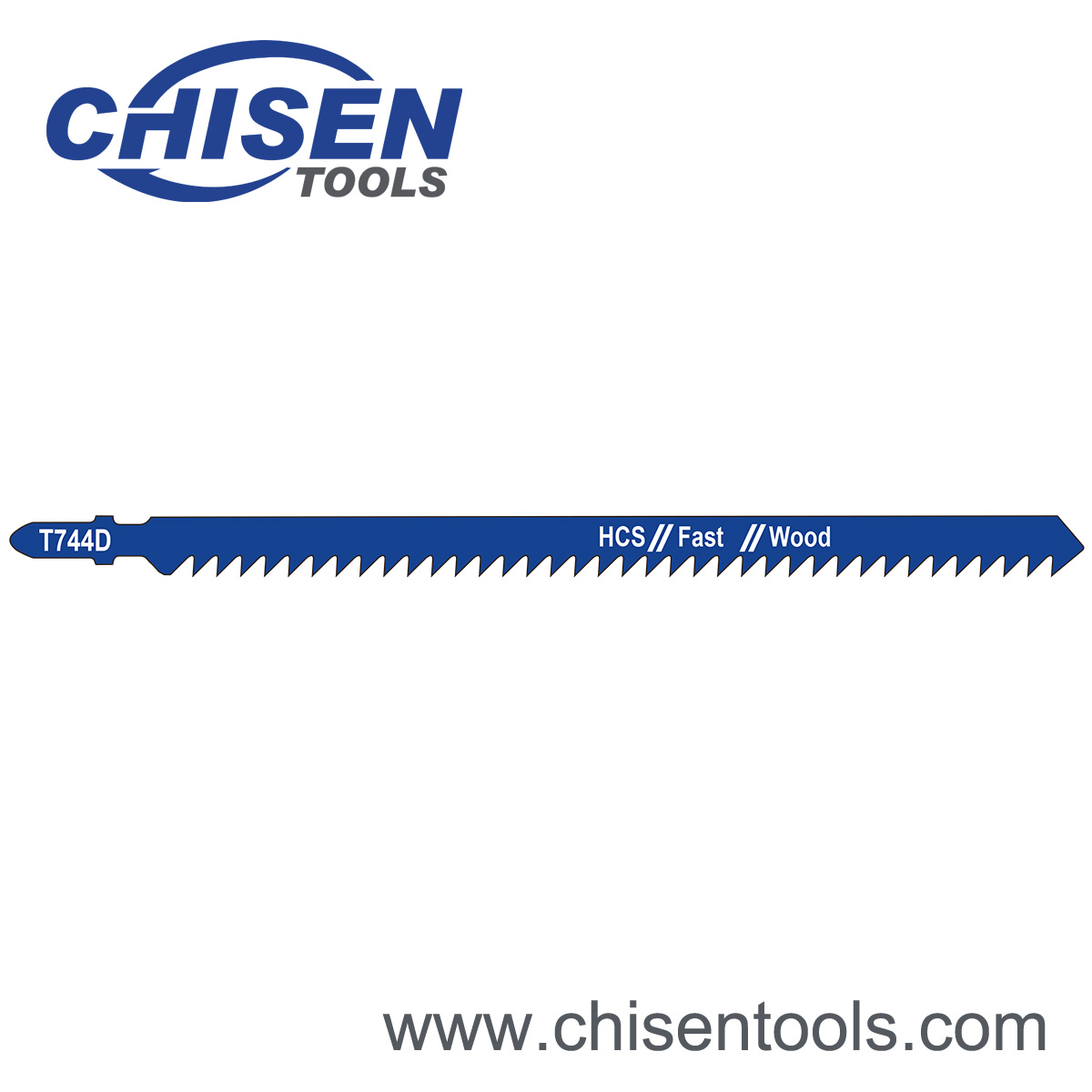

CS048536	T744D	HCS	6 TPI	4.0mm	180mm 7"	155mm 6"	Diagonally Sharpened	Thick construction trimer (<135mm).
CS048537	T119A	HCS	21 TPI	1.2mm	76mm 3"	50mm 2"	Wavy Set	Softwood (2~15mm), plywood, chipboards, wood core plywood, fiberboards. Especially for curve cuts.
CS048538	T119B	HCS	12 TPI	2.0mm	76mm 3"	50mm 2"	Wavy Set	Softwood (2~15mm), plywood, chipboards, wood core plywood, fiberboards. Especially for curve cuts.

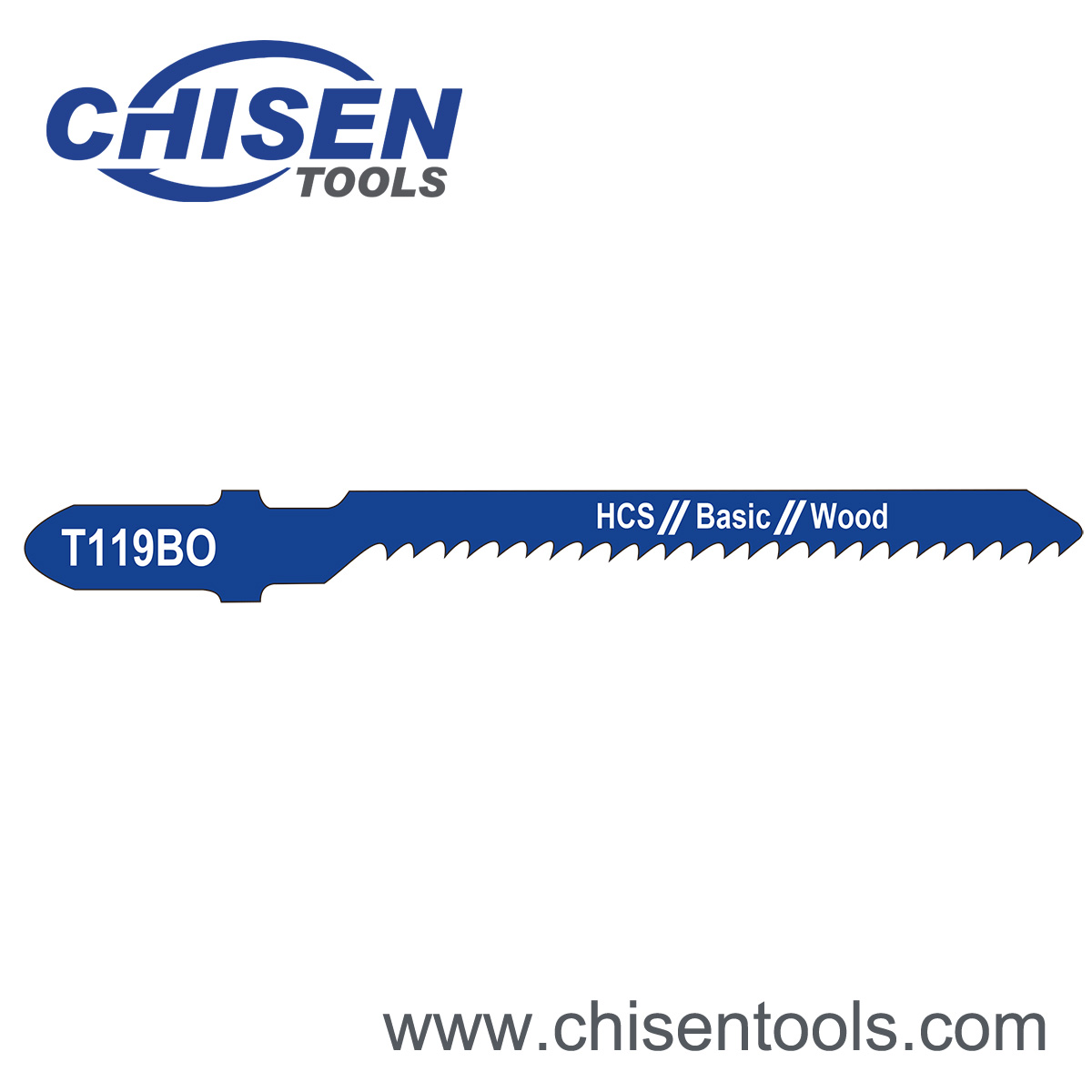

CS048539	T119BO	HCS	12 TPI	2.0mm	76mm 3"	50mm 2"	Wavy Set	Softwood (2~15mm), plywood, chipboards, wood core plywood, fiberboards. Especially for curve cuts.
CS048540	T111B	HCS	12 TPI	2.0mm	100mm 4"	75mm 3"	Side Set	Softwood (4~50mm), chipboards, wood core plywood, fiberboards. Quck cut.

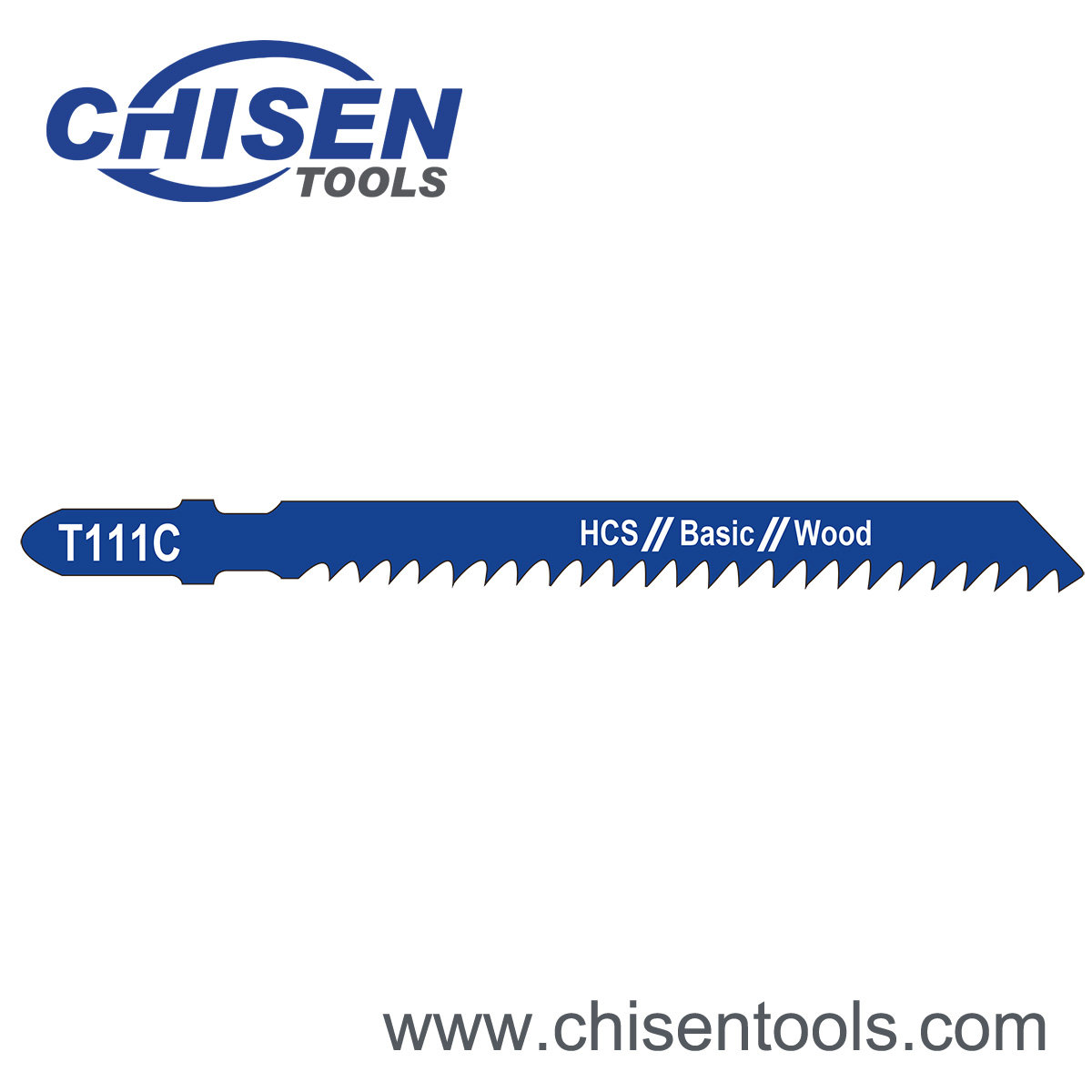

CS048541	T111C	HCS	8 TPI	3.0mm	100mm 4"	75mm 3"	Side Set	Softwood (4~50mm), chipboards, wood core plywood, fiberboards. Quck cut.
CS048542	T111D	HCS	6 TPI	4.0mm	100mm 4"	75mm 3"	Side Set	Softwood (4~50mm), chipboards, wood core plywood, fiberboards. Quck cut.
CS048543	T13	HCS	8 TPI	3.0mm	105mm 4"	75mm 3"	Side Set	Softwood (4~50mm), chipboards, wood core plywood, fiberboards. Quck cut.
CS048544	T311C	HCS	9 TPI	2.75mm	126mm 5"	100mm 4"	Side Set	Softwood (4~50mm), chipboards, wood core plywood, fiberboards. Quck cut.
CS048545	T225B	HCS	9 TPI	2.75mm	250mm 10"	225mm 9"	Side Set	Softwood (4~50mm), chipboards, wood core plywood, fiberboards. Quck cut.

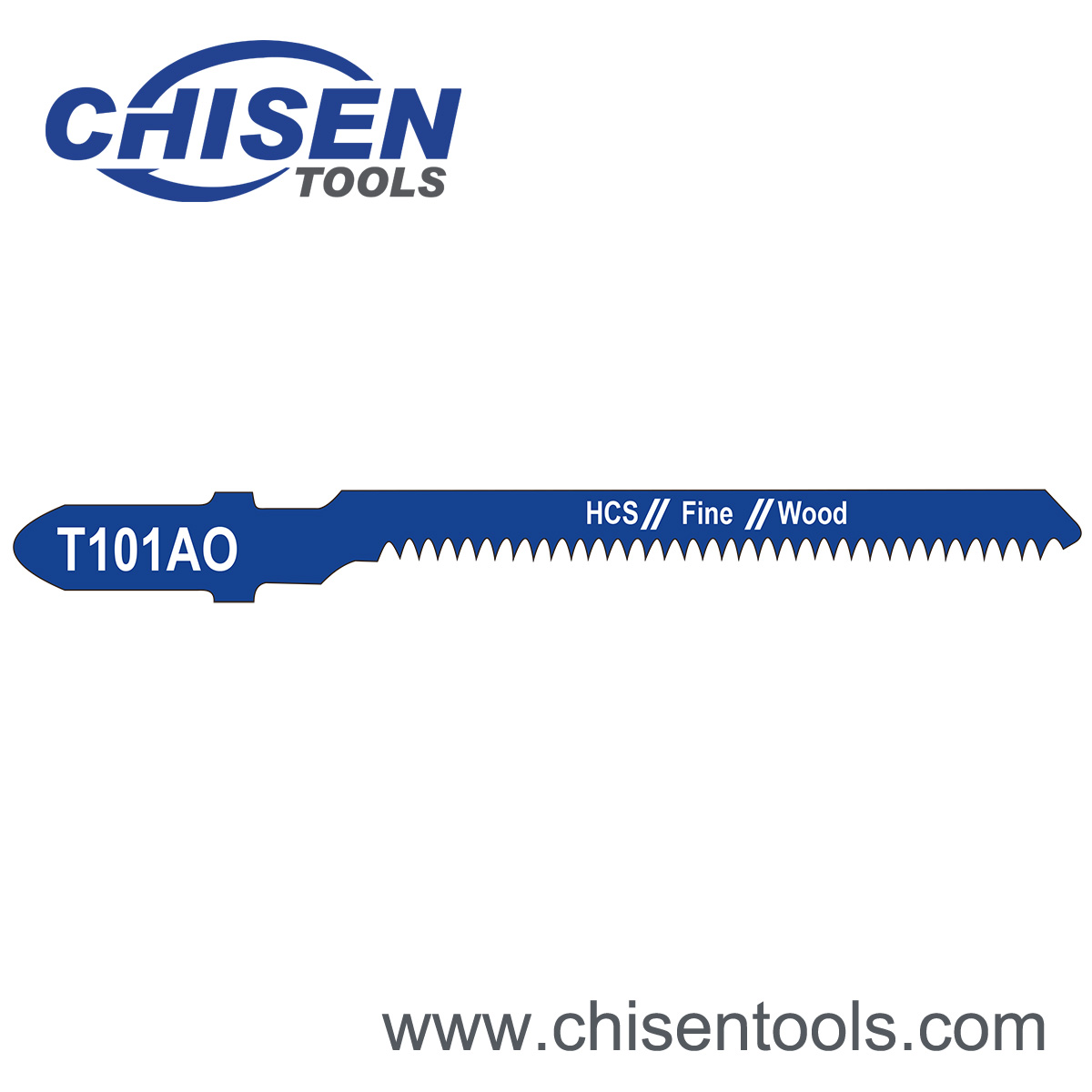

CS048546	T101A0	HCS	20 TPI	1.0mm	76mm 3"	50mm 2"	Conically Ground	Softwood, plywood, laminated panels (1.5~15mm). Especially for curve cuts
CS048547	T101B	HCS	10 TPI	2.5mm	100mm 4"	75mm 3"	Conically Ground	Softwood, chipboards, wood core plywood, fiberboards (3~30mm), plastics/epoxy (diameter <30mm)

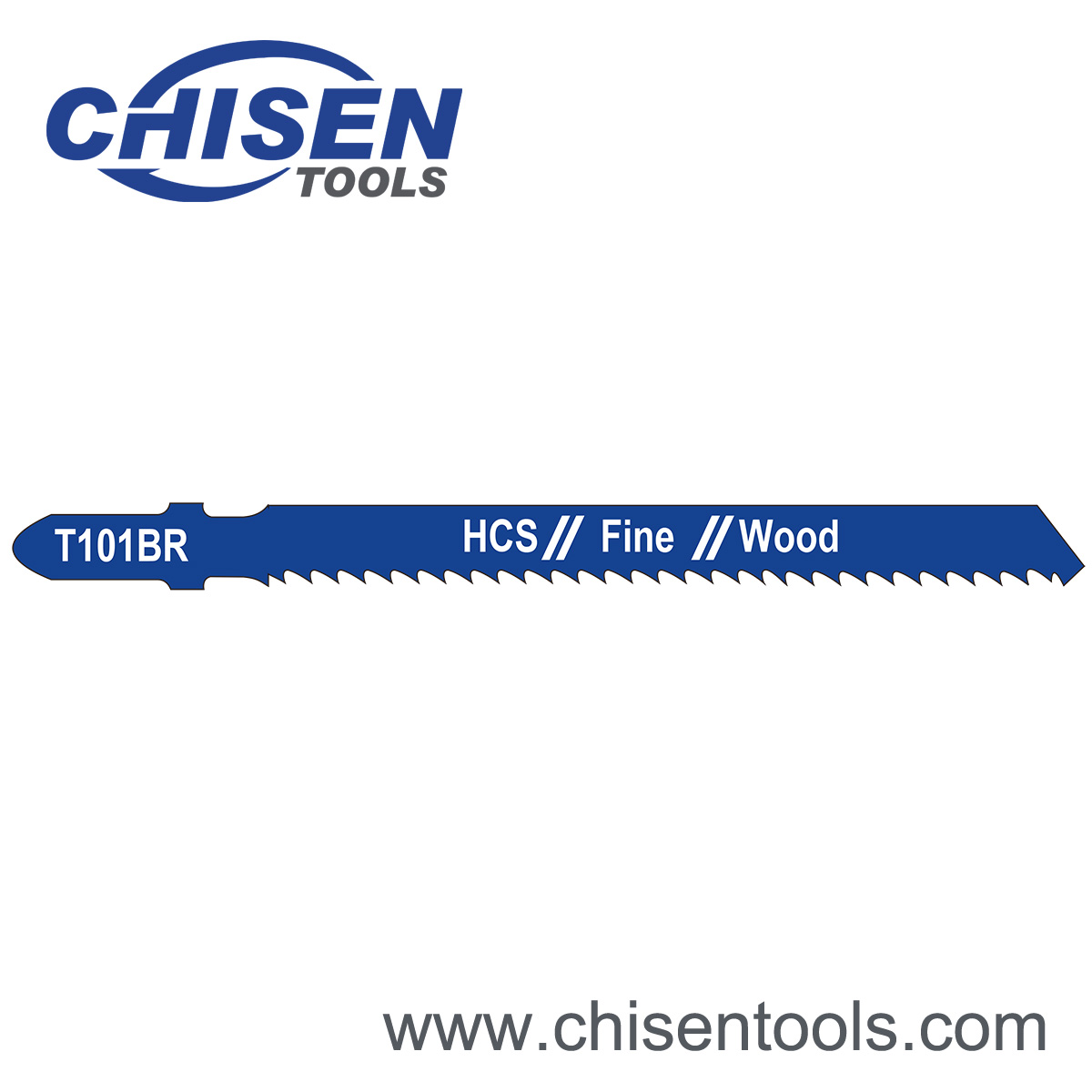

CS048548	T101BR	HCS	10 TPI	2.5mm	100mm 4"	75mm 3"	Conically Ground	Softwood, chipboards, wood core plywood, fiberboards (3~30mm), laminated panels. Clean surface.

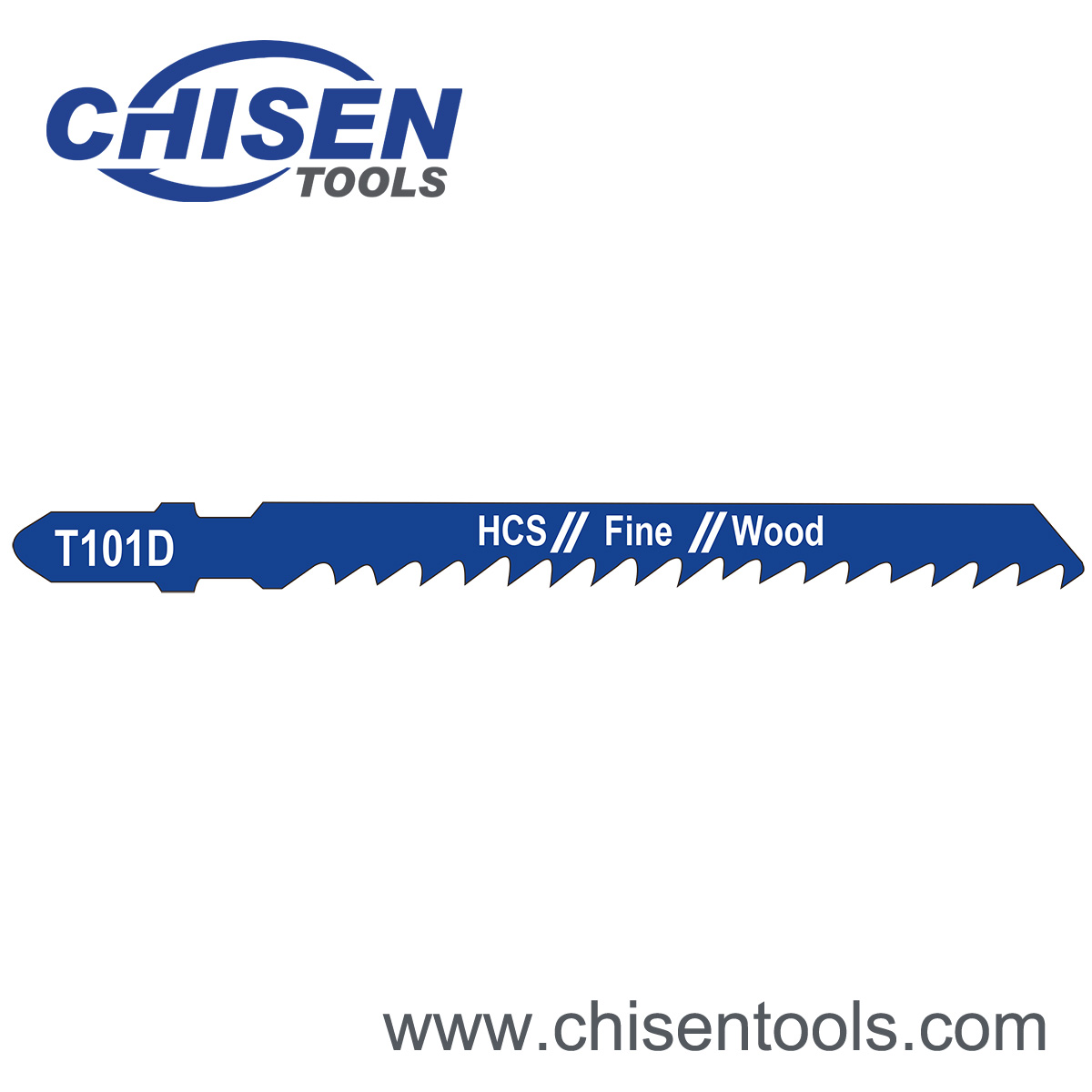

CS048549	T101D	HCS	6 TPI	4.0mm	100mm 4"	75mm 3"	Conically Ground	Softwood, chipboards, wood core plywood, fiberboards (10~45mm)

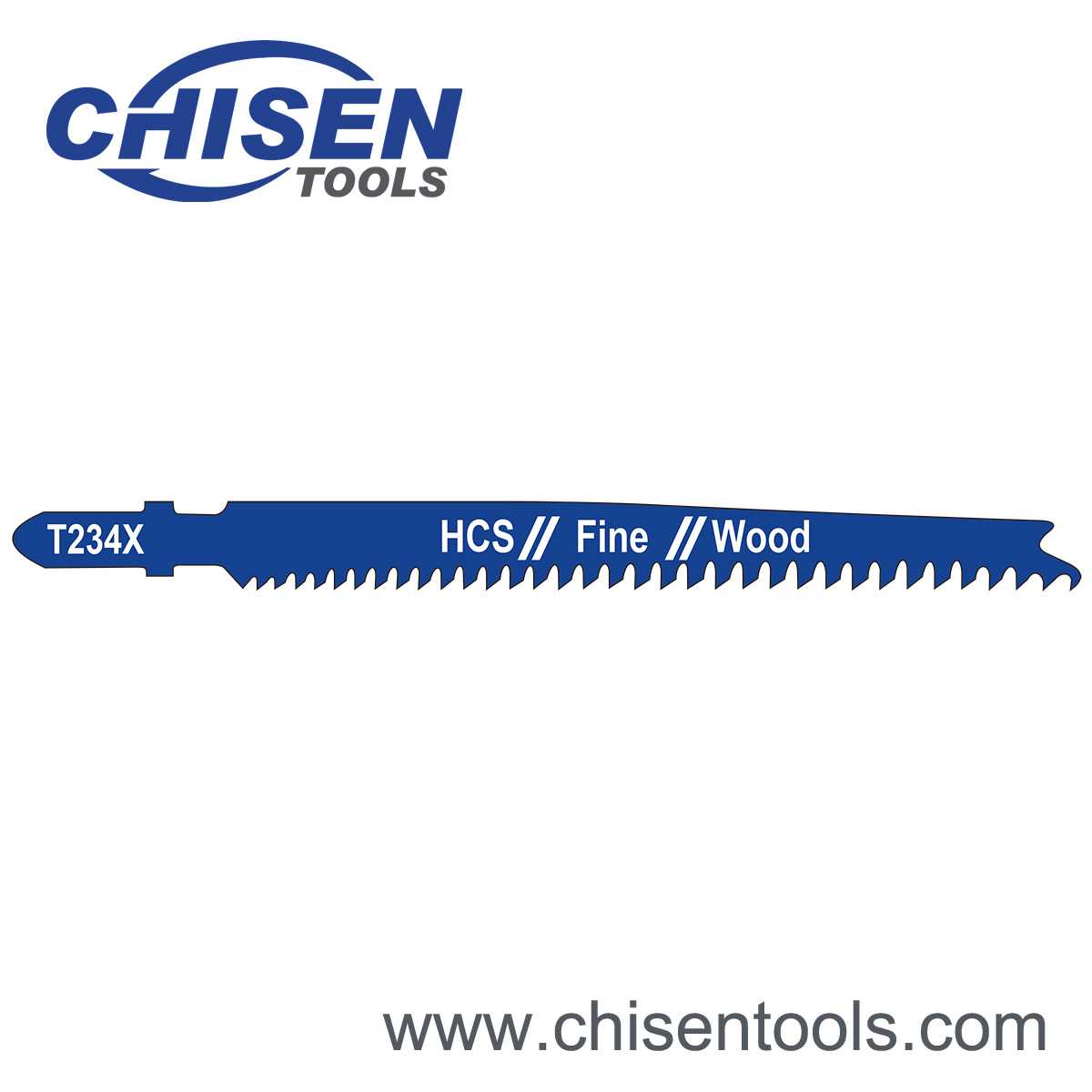

CS048550	T234X	HCS	12~8 TPI	2.0~3.0mm	116mm 4-1/2"	90mm 3-1/2"	Conically Ground	Softwood (2~65mm), chipboards, wood core plywood, fiberboards.
CS048551	T308B	HCS	11 TPI	2.2mm	116mm 4-1/2"	90mm 3-1/2"	Conically Ground	Softwood, chipboards, wood core plywood, fiberboards (10~65mm).

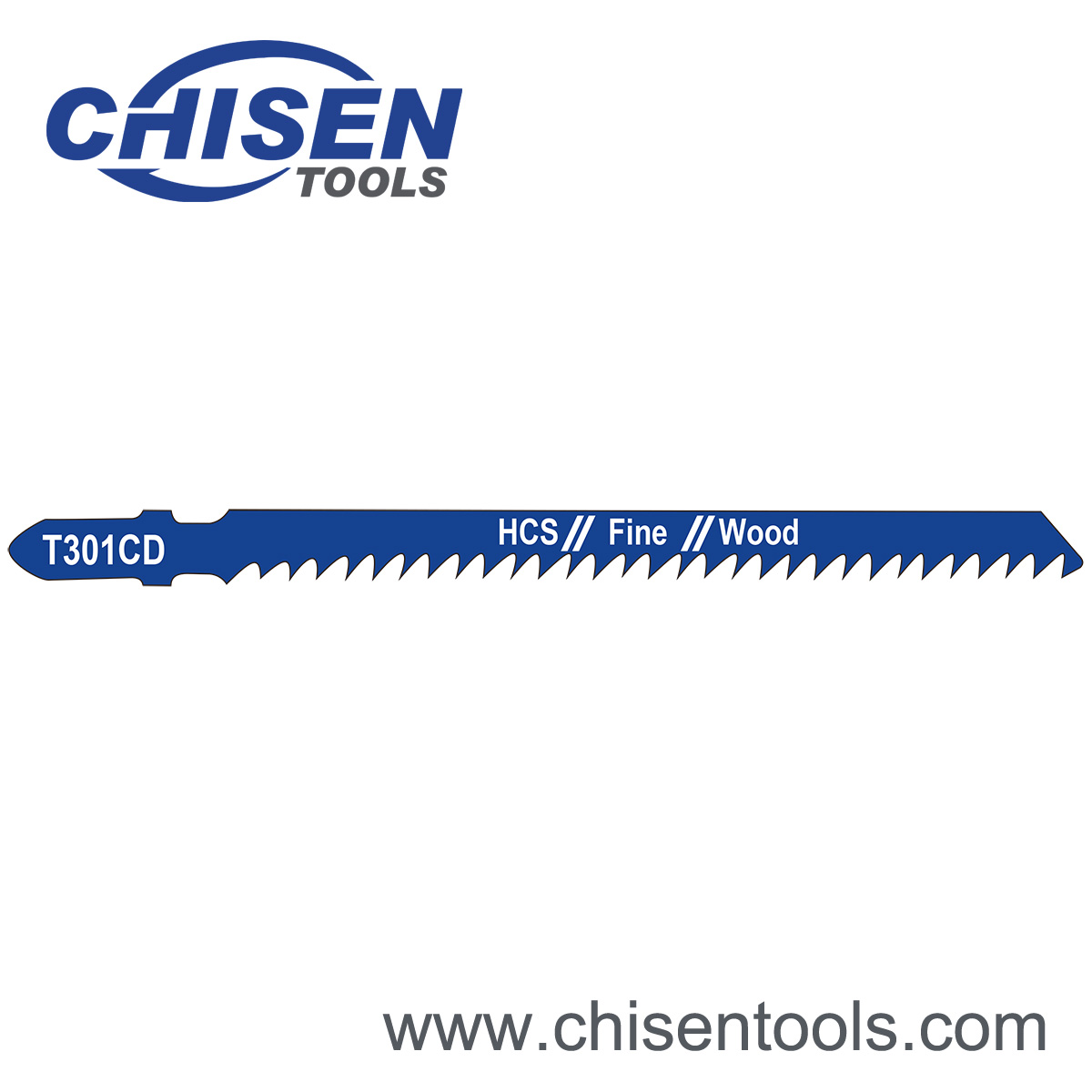

CS048552	T301CD	HCS	8 TPI	3.0mm	116mm 4-1/2"	90mm 3-1/2"	Conically Ground	Softwood, chipboards, wood core plywood, fiberboards (10~65mm).
CS048553	T301DL	HCS	6 TPI	4.0mm	132mm 5-1/2"	110mm 4-1/2"	Conically Ground	Softwood, chipboards, wood core plywood, fiberboards (10~65mm).
CS048554	T101B	HCS	10 TPI	2.5mm	100mm 4"	75mm 3"	Conically Ground	Softwood, chipboards, wood core plywood, fiberboards (4~50mm). Especially for curve cuts.
CS048555	T244D SP	HCS	6 TPI	4.0mm	100mm 4"	75mm 3"	Conically Ground	Softwood, chipboards, wood core plywood, fiberboards (4~50mm). Especially for curve cuts.
CS048556	T142HB	HCS	11 TPI	2.3mm	112mm 4-2/5"	75mm 3"	Diagonally Sharpened	Softwood, chipboards, wood core plywood, fiberboards (10~50mm).
CS048561	T118AF	BIM	21 TPI	1.2mm	76mm 3"	50mm 2"	Wavy Set	Thin sheet metal (1~3mm)
CS048562	T118BF	BIM	12 TPI	2.0mm	76mm 3"	50mm 2"	Wavy Set	Medium thick sheet metal (2.5~6mm)
CS048563	T118GF	BIM	32 TPI	0.8mm	76mm 3"	50mm 2"	Wavy Set	Very thin metal plate (0.5~1.5mm)
CS048564	T127DF	BIM	8 TPI	3.0mm	100mm 4"	75mm 3"	Wavy Set	Thin to thick sheet metal (3~15mm), pipe + profiles (diameter <30mm), wood, all types of boards.
CS048565	T118EOF	BIM	18 TPI	1.4mm	76mm 3"	50mm 2"	Wavy Set	Thin sheet metal (1.5~3mm). Especially for curve cuts.
CS048566	T318AF	BIM	21 TPI	1.2mm	132mm 5-1/2"	110mm 4-1/2"	Side Set	Thin sheet metal (1~3mm), sandwich materials (<65mm), pipes + open profiles, including aluminium (diameter <65mm).
CS048567	T318BF	BIM	12 TPI	2mm	132mm 5-1/2"	110mm 4-1/2"	Side Set	Medium-thick sheet metal (2.5~6mm), sandwich materials (<65mm), pipes + open profiles, including aluminium (diameter <65mm).
CS048568	T345XF	BIM	10-5 TPI	2.4-5mm	132mm 5-1/2"	110mm 4-1/2"	Wave Set	Construction trimber with nails (<65mm), wooden materials, plastics, metal plate, pipes + open profiles, including aluminium (diameter 3~10mm).
CS048569	T323MF	BIM	8-12 TPI	2-3mm	132mm 5-1/2"	110mm 4-1/2"	Side Set	Construction trimber with nails (<65mm), wooden materials, plastics, metal plate, pipes + open profiles, including aluminium (diameter 10~50mm).
CS048570	T318VF	BIM	10-14 TPI	1.8-2.5mm	132mm 5-1/2"	110mm 4-1/2"	Side Set	Medium-thick sheet metal (5~10mm), sandwich materials (<65mm), pipes + open profiles, including aluminium (diameter <65mm).
CS048571	T718GF	BIM	32 TPI	0.8mm	185MM 7"	160mm 6"	Side Set	Thin sheet metal (1~3mm), sandwich materials (<65mm), pipes + open profiles, including aluminium (diameter <65mm).
CS048572	T144DF	BIM	6 TPI	4.0mm	100mm 4"	75mm 3"	Diagonally Sharpened	Hardwood and softwood (5~50mm), all types of panels, including laminates.
CS048573	T101BIF	BIM	14 TPI	1.7mm	100mm 4"	75mm 3"	Wave Set	Laminates and laminateed panels (1.5~15mm).
CS048574	T101AIF	BIM	14 TPI	1.7mm	100mm 4"	75mm 3"	Wave Set	Hardwood, laminates, laminates boards/HPL(2~30mm), plastics/epoxy(diameter <30mm). Splinter free cuts.
CS048575	T101A0F	BIM	18 TPI	1.4mm	75mm 3"	50mm 2"	Wave Set	Hardwood, laminates (1.5~15mm), laminates boards/HPL(2~30mm), plastics/epoxy(diameter <30mm). Splinter free cuts.
CS048576	T101BRF	BIM	10 TPI	2.5mm	100mm 4"	75mm 3"	Wave Set	Laminated panels (3~30mm), kitchen worltops (3~45mm). Clean surface.
CS048577	T101DF	BIM	6 TPI	4.0mm	100mm 4"	75mm 3"	Wave Set	Hardwood, laminates, laminates boards/HPL(10~45mm), plastics/epoxy(diameter <30mm)
CS048577	T101BF	BIM	10 TPI	2.5mm	100mm 4"	75mm 3"	Wave Set	Hardwood, laminates, laminates boards/HPL(3~30mm), plastics/epoxy(diameter <30mm)
CS048578	T301CDF	BIM	8 TPI	3.0mm	116mm 4-1/2"	90mm 3-1/2"	Wave Set	Hardwood and softwood (4~65mm), laminated boards/HPL
CS048579	T344DF	BIM	6 TPI	4.0mm	152mm 6"	125mm 5"	Diagonal Sharpened	Thick hardwood and softwood (5~100mm), all types of boards, including laminates

U-shank jig saw blades

FITS: BLACK & DECKER®, STANLEY®, RYOBI®, MAKITA®, SKIL®, HITACHI®.

Item No.	Model	Material	Teeth per Inch	Teeth Pitch	Total Length	Tooth Spacing	Tooth Geometry	Application

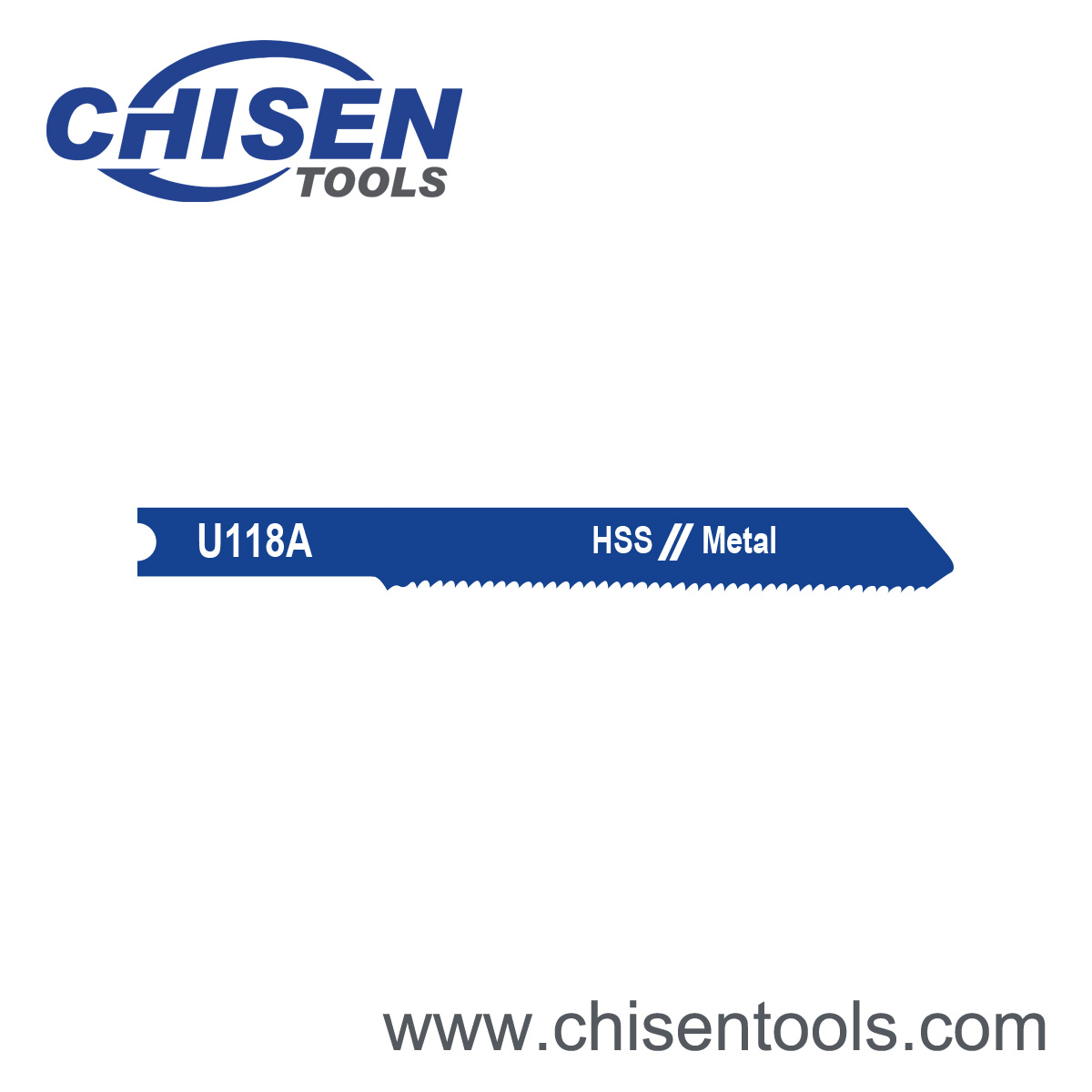

CS048601	U118A	HSS	21 TPI	1.2mm	76mm 3"	50mm 2"	Wavy Set	Thin sheet metal (1~3mm)

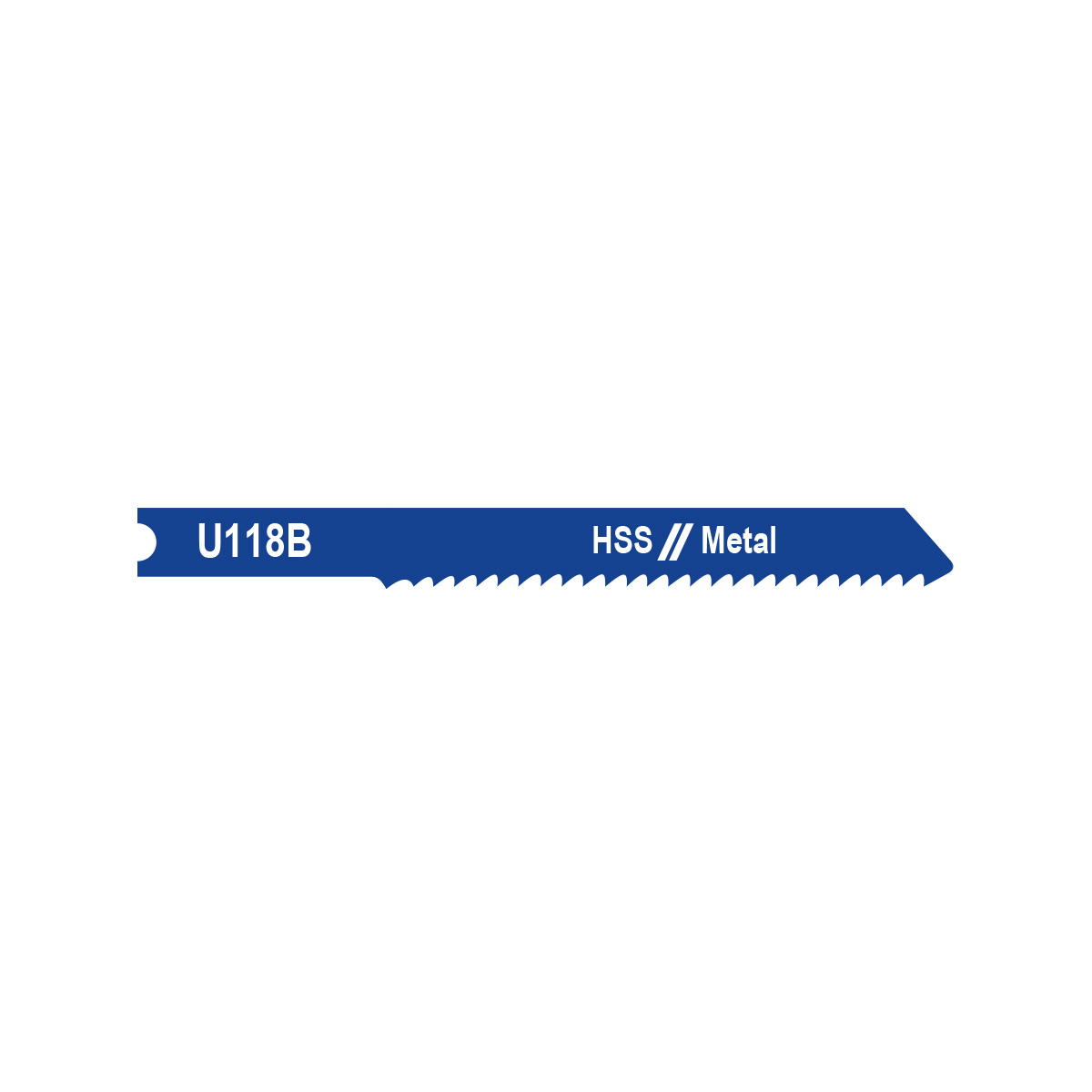

CS048602	U118B	HSS	12 TPI	2.0mm	76mm 3"	50mm 2"	Wavy Set	Medium thick sheet metal (2.5~6mm)
CS048603	U118G	HSS	12 TPI	2.0mm	76mm 3"	50mm 2"	Wavy Set	Very thin metal plate (0.5~1.5mm)
CS048604	U227D	HSS	8 TPI	3.0mm	100mm 4"	75mm 3"	Side Set	Thin to thick sheet metal (3~15mm), pipe + profiles (diameter <30mm). Especially for curve cuts.

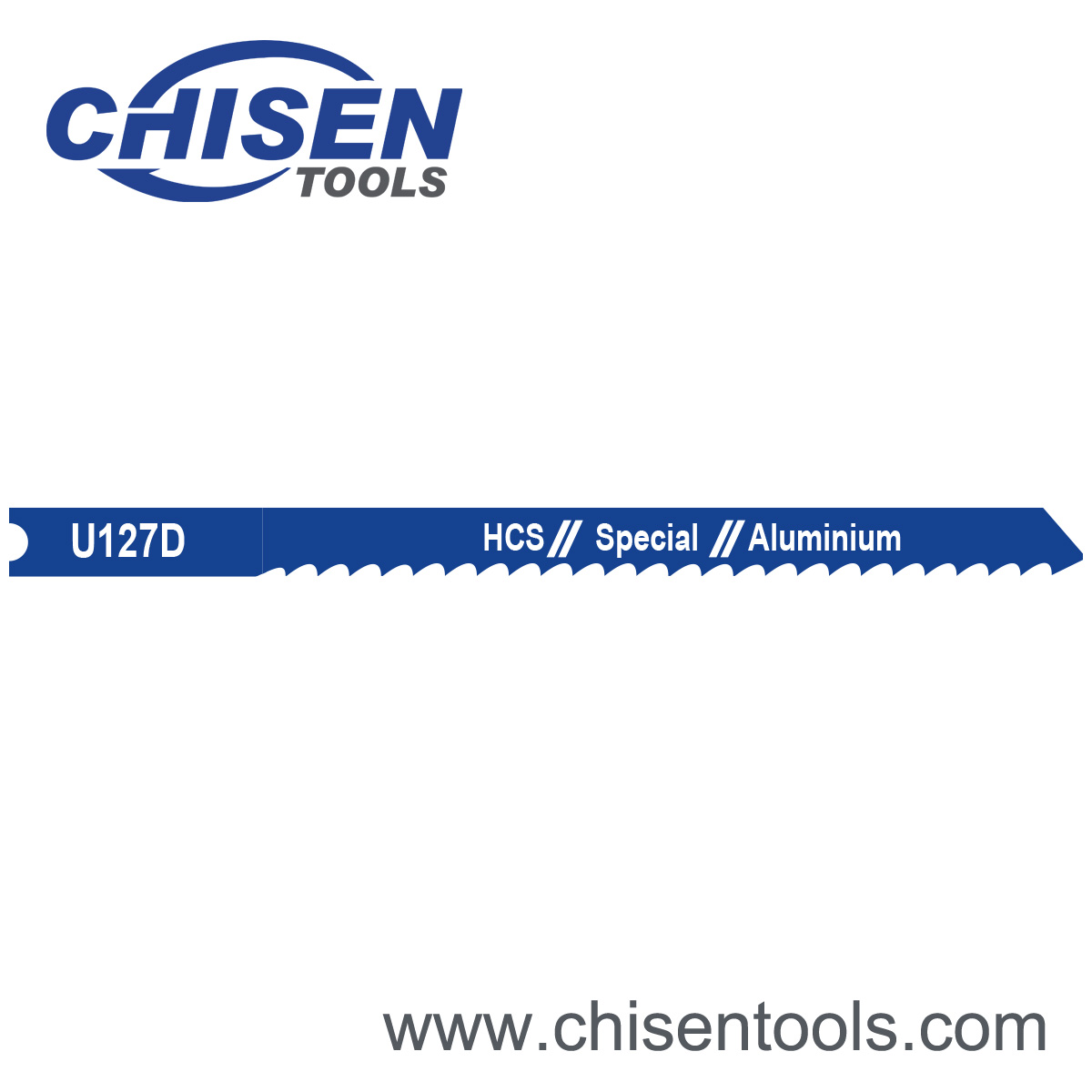

CS048505	U127D	HSS	8 TPI	3.0mm	100mm 4"	75mm 3"	Side Set	Thin to thick sheet metal (3~15mm), pipe + profiles (diameter <30mm). Especially for curve cuts.

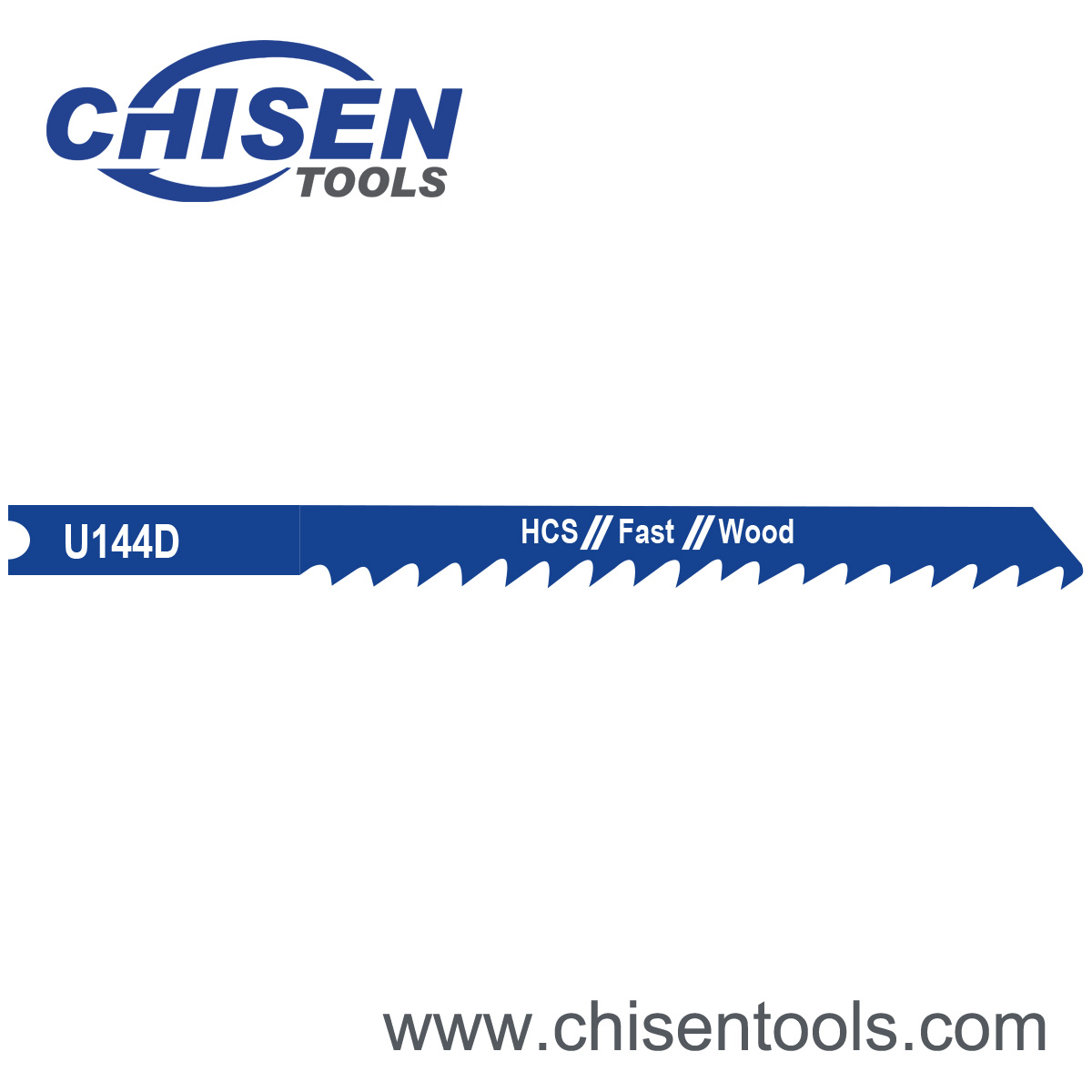

CS048606	U144D	HCS	6 TPI	4.0mm	100mm 4"	75mm 3"	Diagonally Sharpened	Softwood (5~50mm), chipboards, wood core plywood, fiberboards.

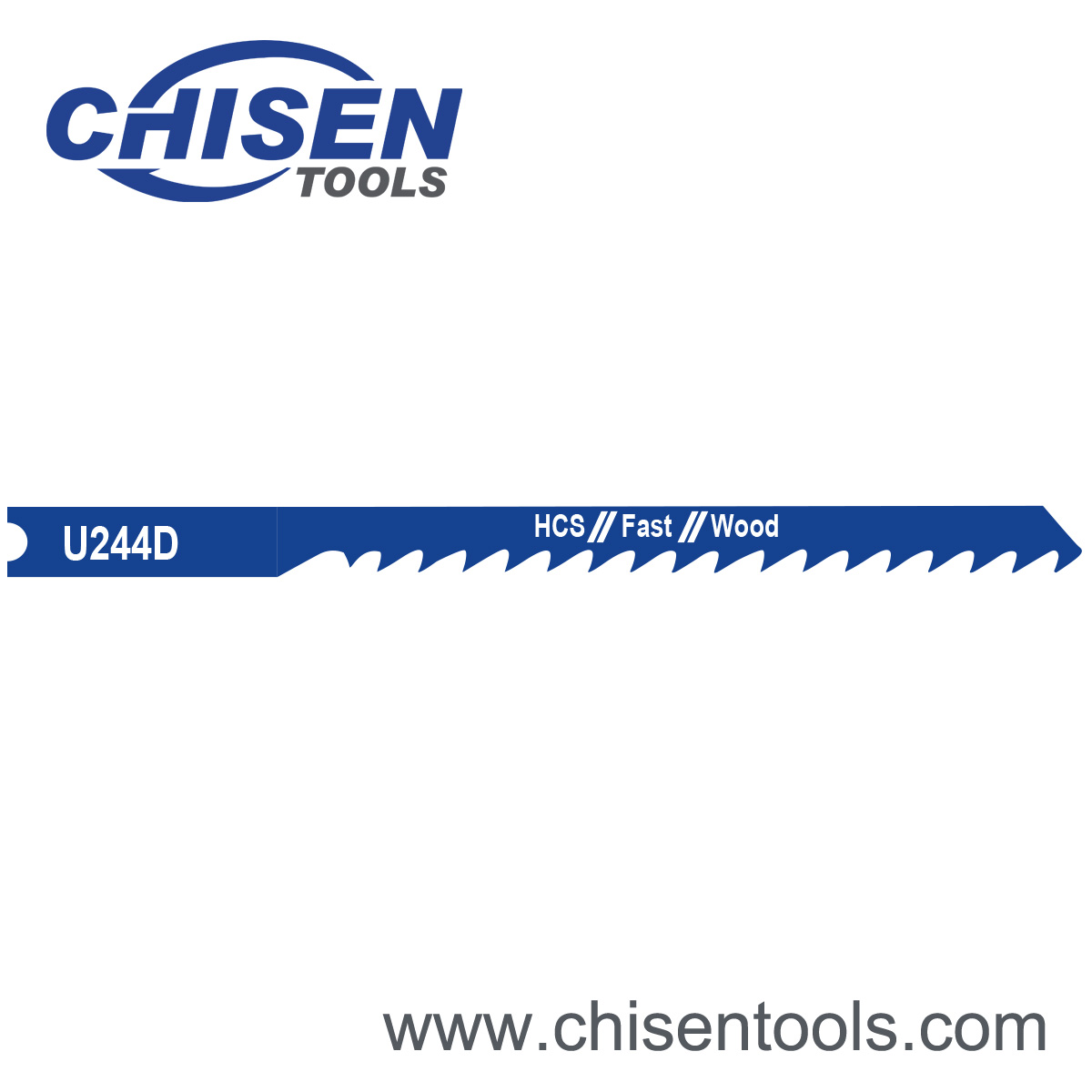

CS048607	U244D	HCS	6 TPI	4.0mm	100mm 4"	75mm 3"	Diagonally Sharpened	Softwood (5~50mm), chipboards, wood core plywood, fiberboards. Especially for curve cuts.

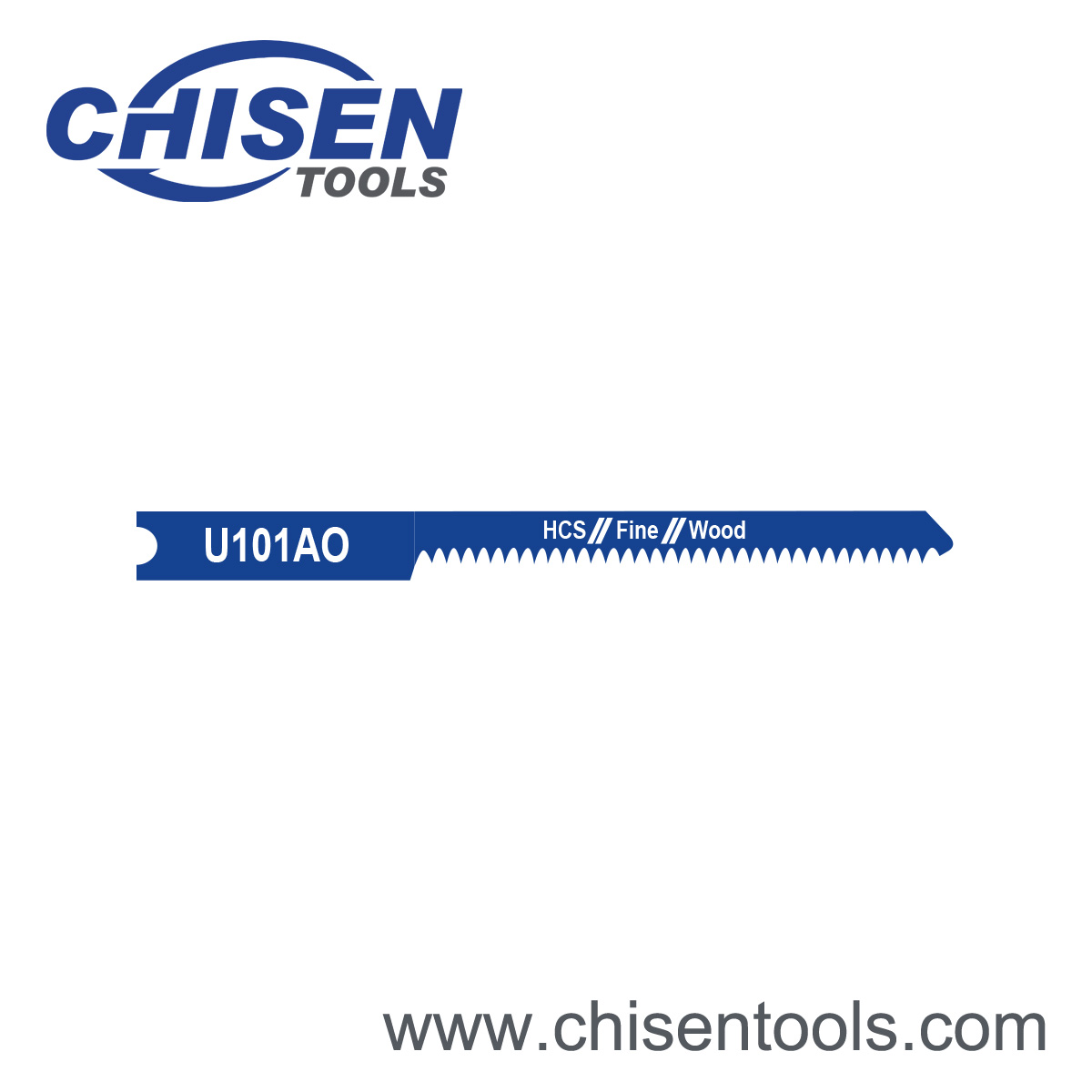

CS048608	U101A0	HCS	20 TPI	1.0mm	76mm 3"	50mm 2"	Conically Ground	Softwood, plywood, laminated panels (1.5~15mm). Especially for curve cuts

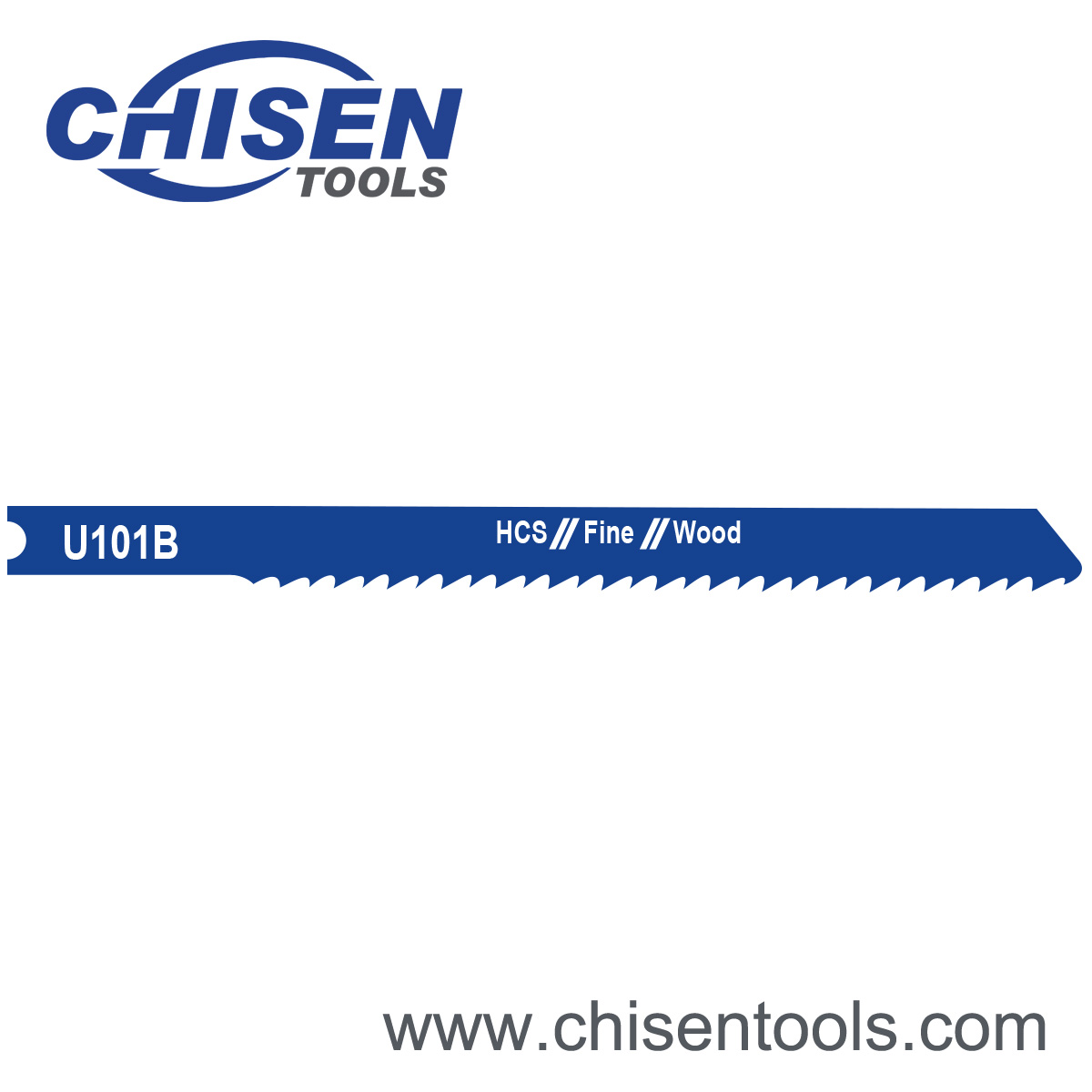

CS048609	U101B	HCS	10 TPI	2.5mm	100mm 4"	75mm 3"	Conically Ground	Softwood, chipboards, wood core plywood, fiberboards (3~30mm), plastics/epoxy (diameter <30mm)

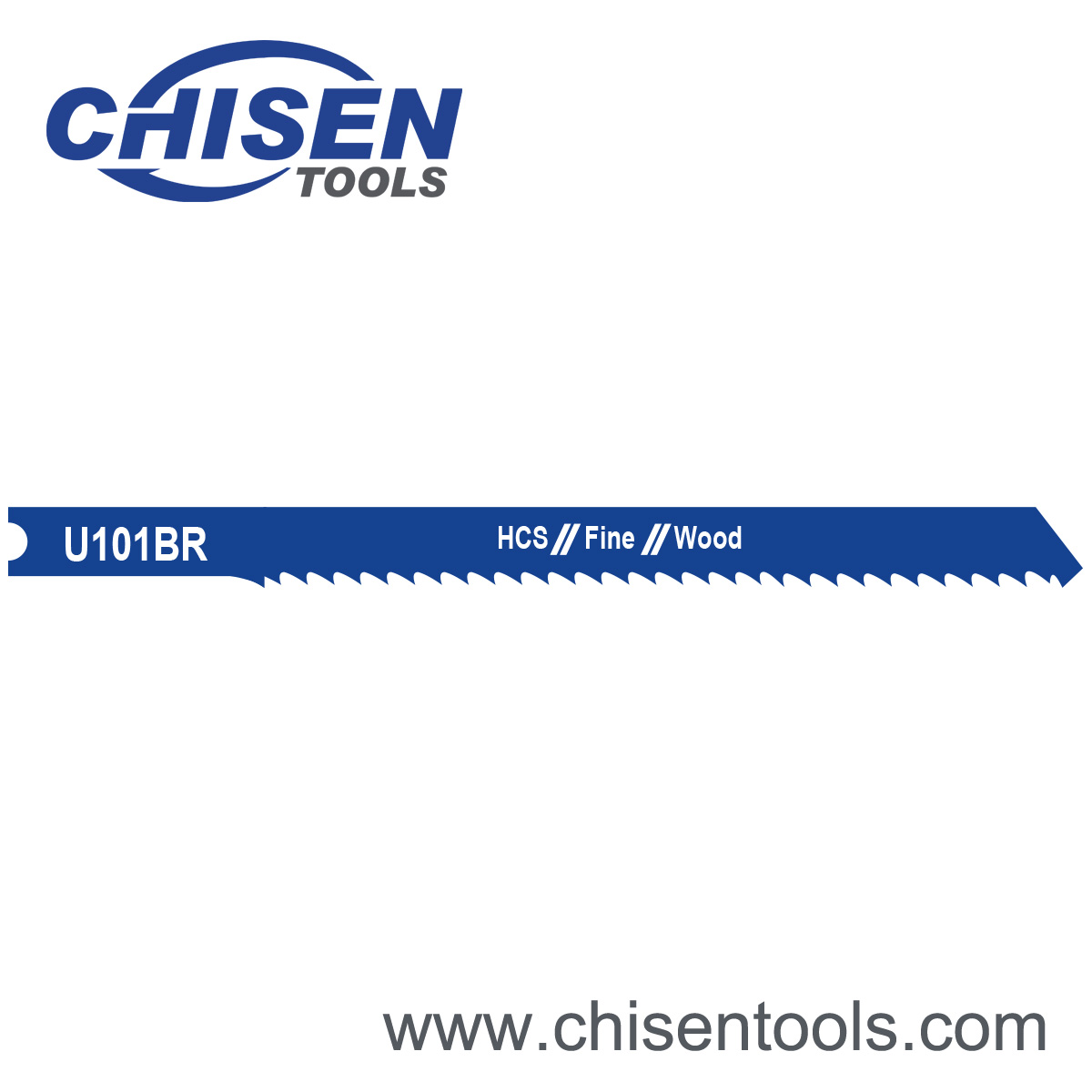

CS048610	U101BR	HCS	10 TPI	2.5mm	100mm 4"	75mm 3"	Conically Ground	Softwood, chipboards, wood core plywood, fiberboards (3~30mm), laminated panels. Clean surface.

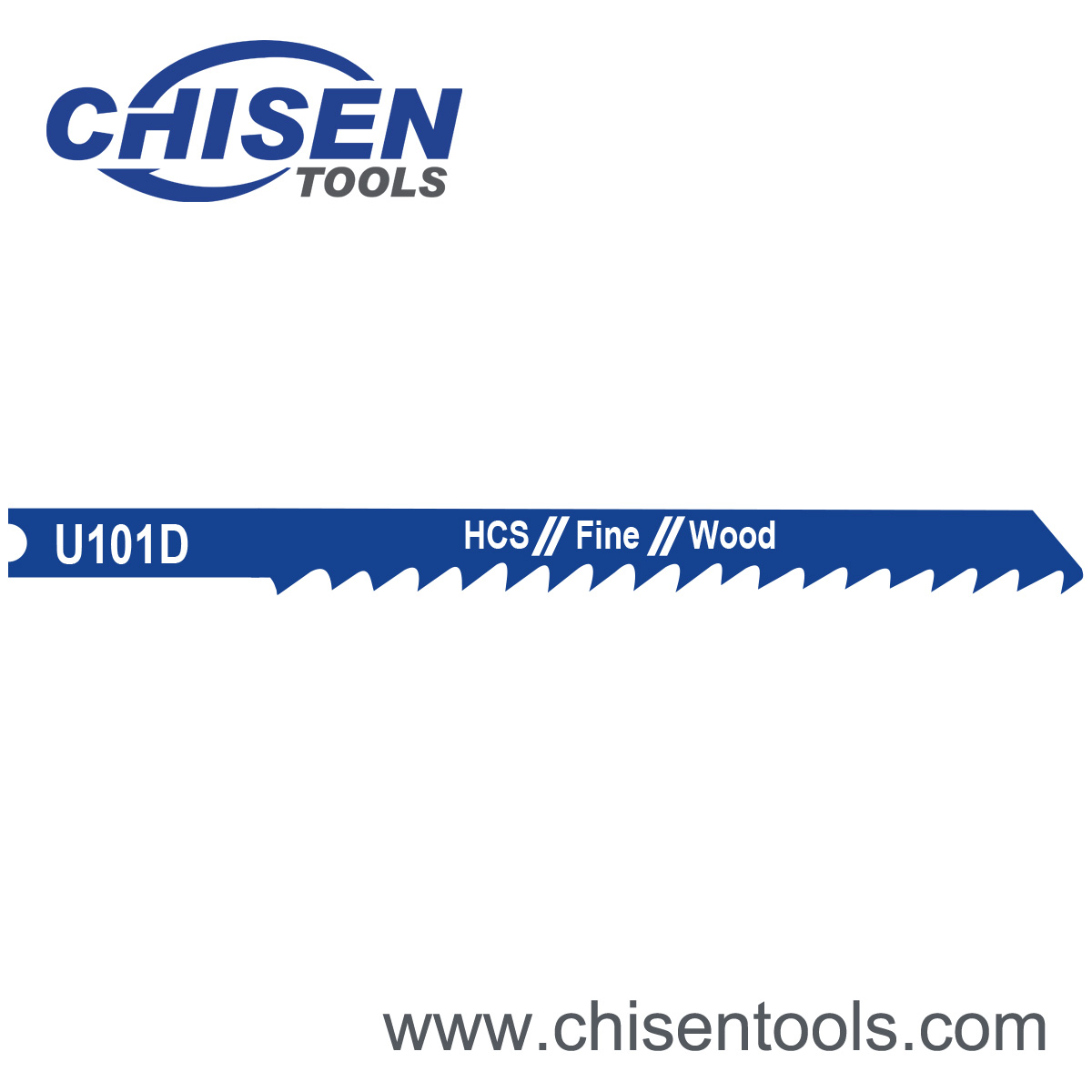

CS048611	U101D	HCS	6 TPI	4.0mm	100mm 4"	75mm 3"	Conically Ground	Softwood, chipboards, wood core plywood, fiberboards (10~45mm)
CS048612	U234X	HCS	12~8 TPI	2.0~3.0mm	116mm 4-1/2"	90mm 3-1/2"	Conically Ground	Softwood (2~65mm), chipboards, wood core plywood, fiberboards.
CS048613	U119B	HCS	12 TPI	2.0mm	76mm 3"	50mm 2"	Wavy Set	Softwood (2~15mm), plywood, chipboards, wood core plywood, fiberboards. Especially for curve cuts.

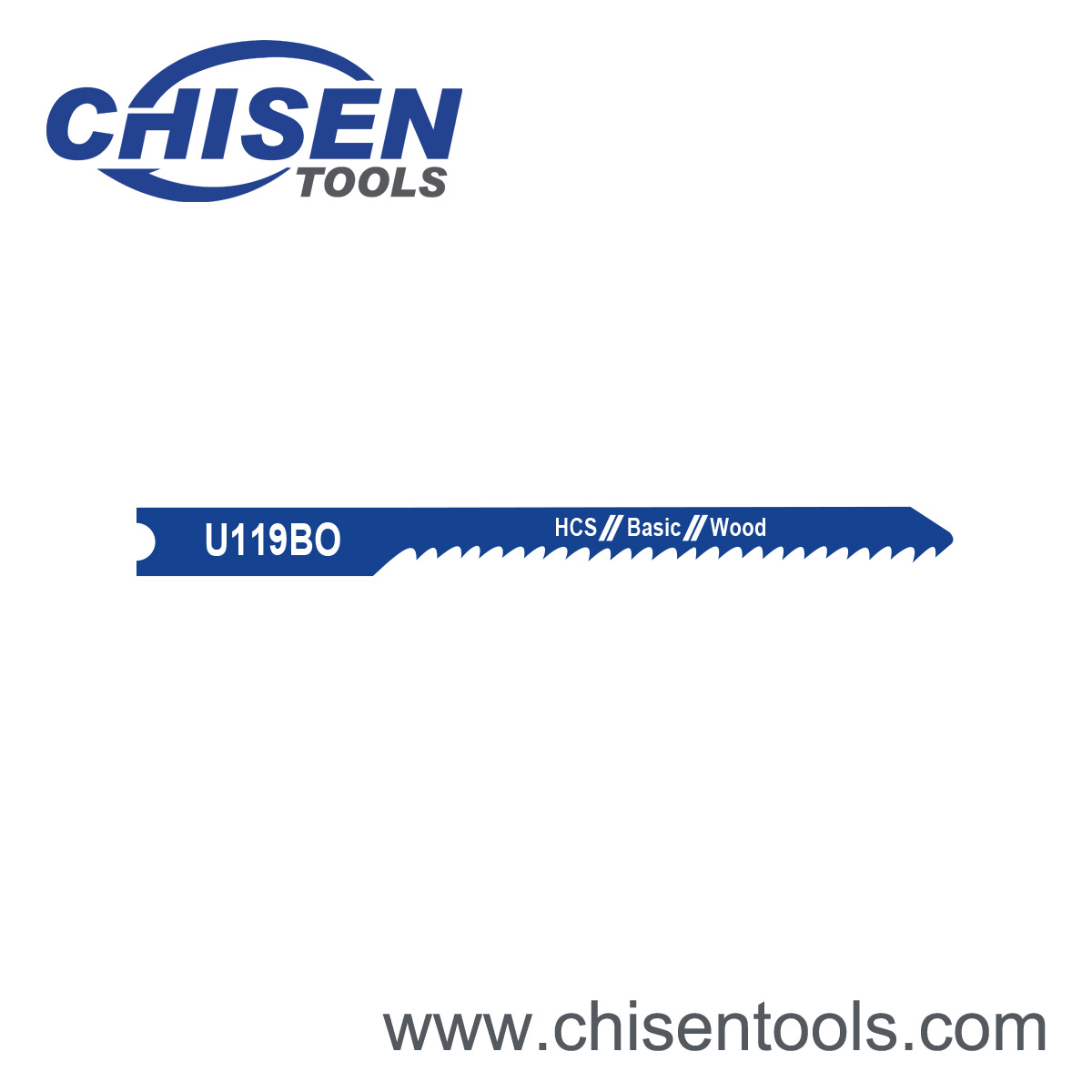

CS048614	U119BO	HCS	12 TPI	2.0mm	76mm 3"	50mm 2"	Wavy Set	Softwood (2~15mm), plywood, chipboards, wood core plywood, fiberboards. Especially for curve cuts.

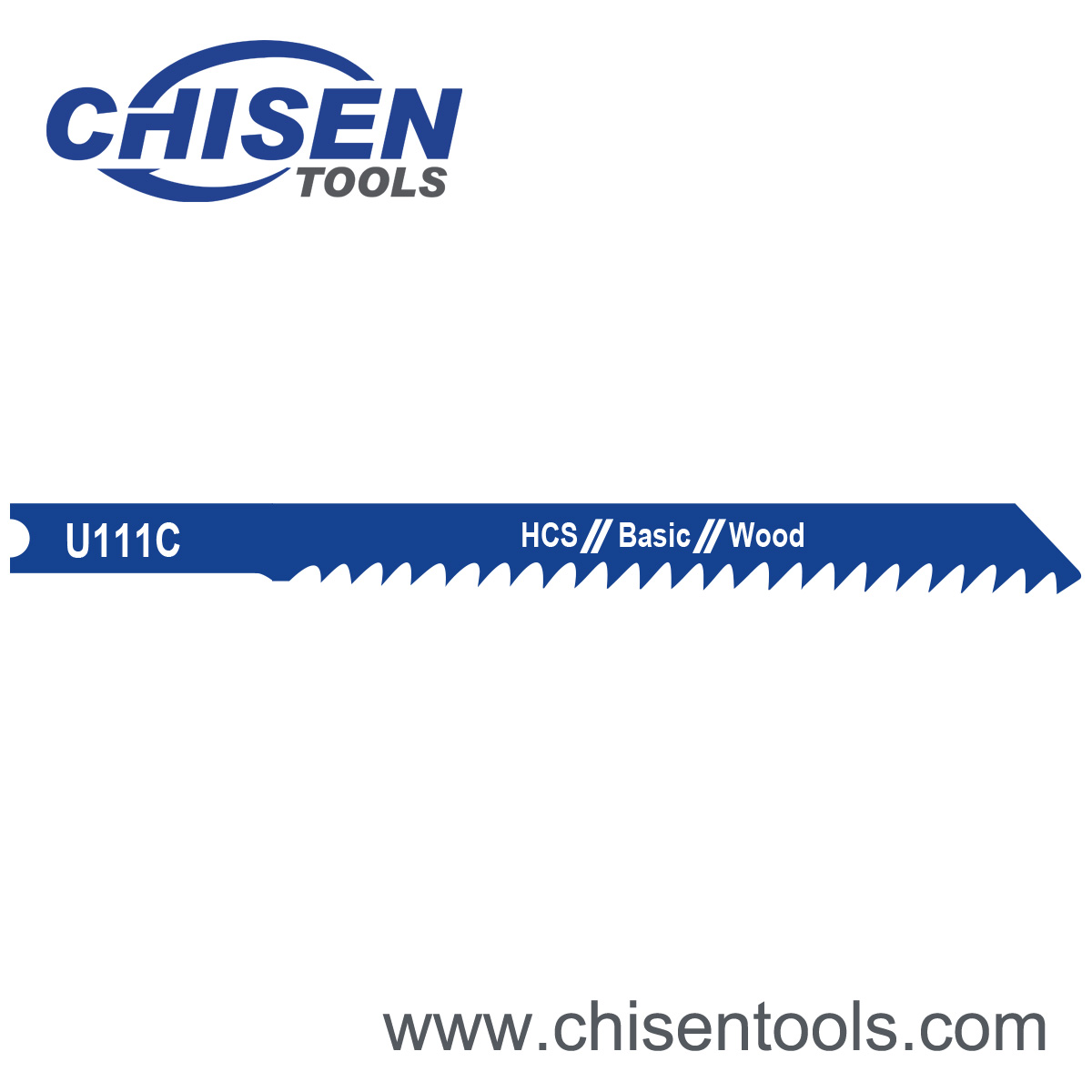

CS048615	U111C	HCS	8 TPI	3.0mm	100mm 4"	75mm 3"	Side Set	Softwood (4~50mm), chipboards, wood core plywood, fiberboards. Quck cut.
CS0485161	U118AF	BIM	21 TPI	1.2mm	76mm 3"	50mm 2"	Wavy Set	Thin sheet metal (1~3mm)
CS048617	U118BF	BIM	12 TPI	2.0mm	76mm 3"	50mm 2"	Wavy Set	Medium thick sheet metal (2.5~6mm)
CS048618	U127DF	BIM	8 TPI	3.0mm	100mm 4"	75mm 3"	Side Set	Thin to thick sheet metal (3~15mm), pipe + profiles (diameter <30mm), wood, all types of boards.
CS048619	U101BRF	BIM	10 TPI	2.5mm	100mm 4"	75mm 3"	Conically Ground	Laminated panels (3~30mm), kitchen worltops (3~45mm). Clean surface.
CS048620	U101BF	BIM	10 TPI	2.5mm	100mm 4"	75mm 3"	Conically Ground	Hardwood, laminates, laminates boards/HPL(3~30mm), plastics/epoxy(diameter <30mm)
CS048621	U144DF	BIM	6 TPI	4.0mm	100mm 4"	75mm 3"	Diagonally Sharpened	Hardwood and softwood (5~50mm), all types of panels, including laminates.
CS048622	U301CDF	BIM	8 TPI	3.0mm	116mm 4-1/2"	90mm 3-1/2"	Conically Ground	Hardwood and softwood (4~65mm), laminated boards/HPL

Jig Saw Blade's Tooth Geometry Selection Guide

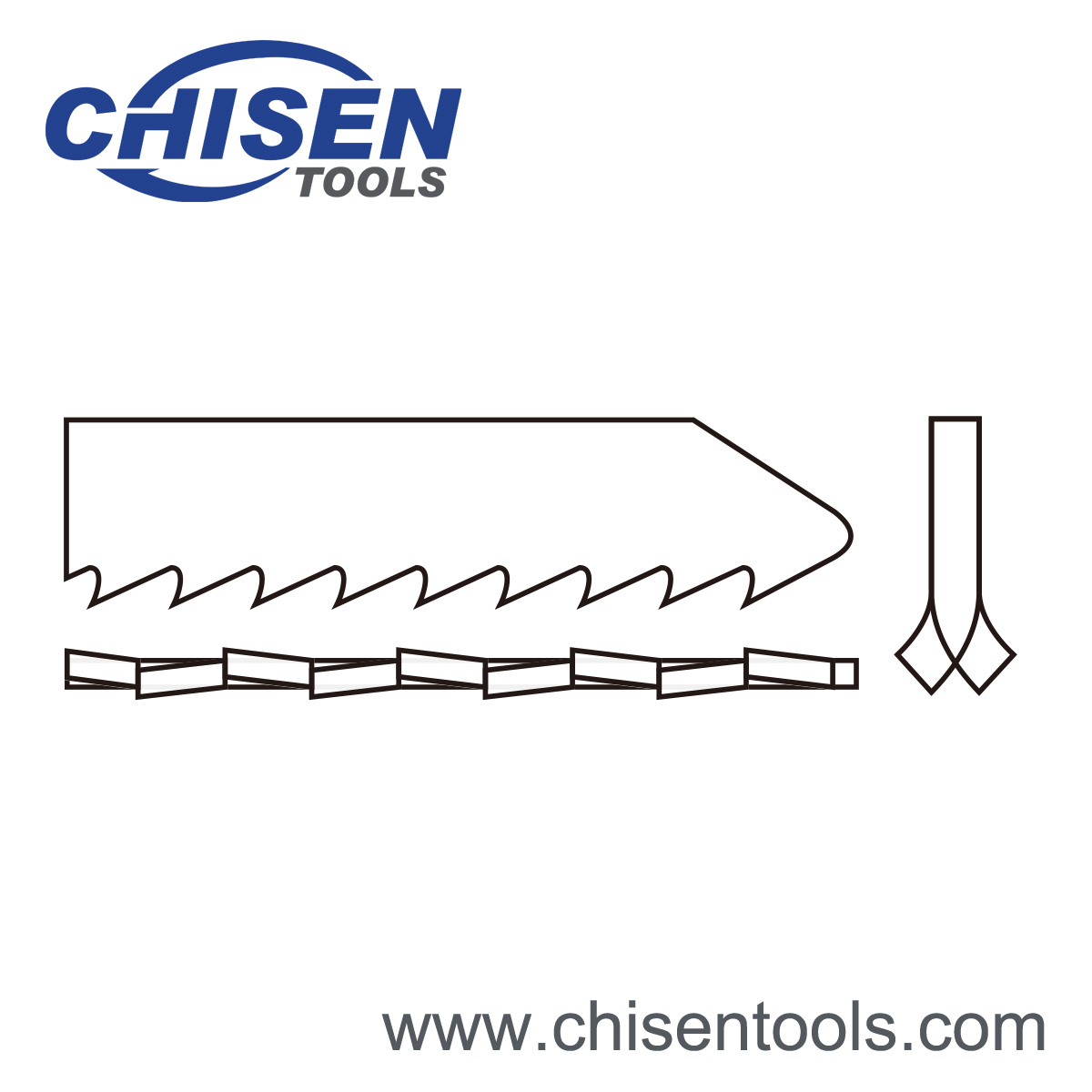

MILLED & SIDE SET TEETH

Side set toothing for rough cuts. Jig saw blades featuring this kind of geometry produce a quick rough cut into soft/hardwood, aluminium, plastic and non-ferrous metals.

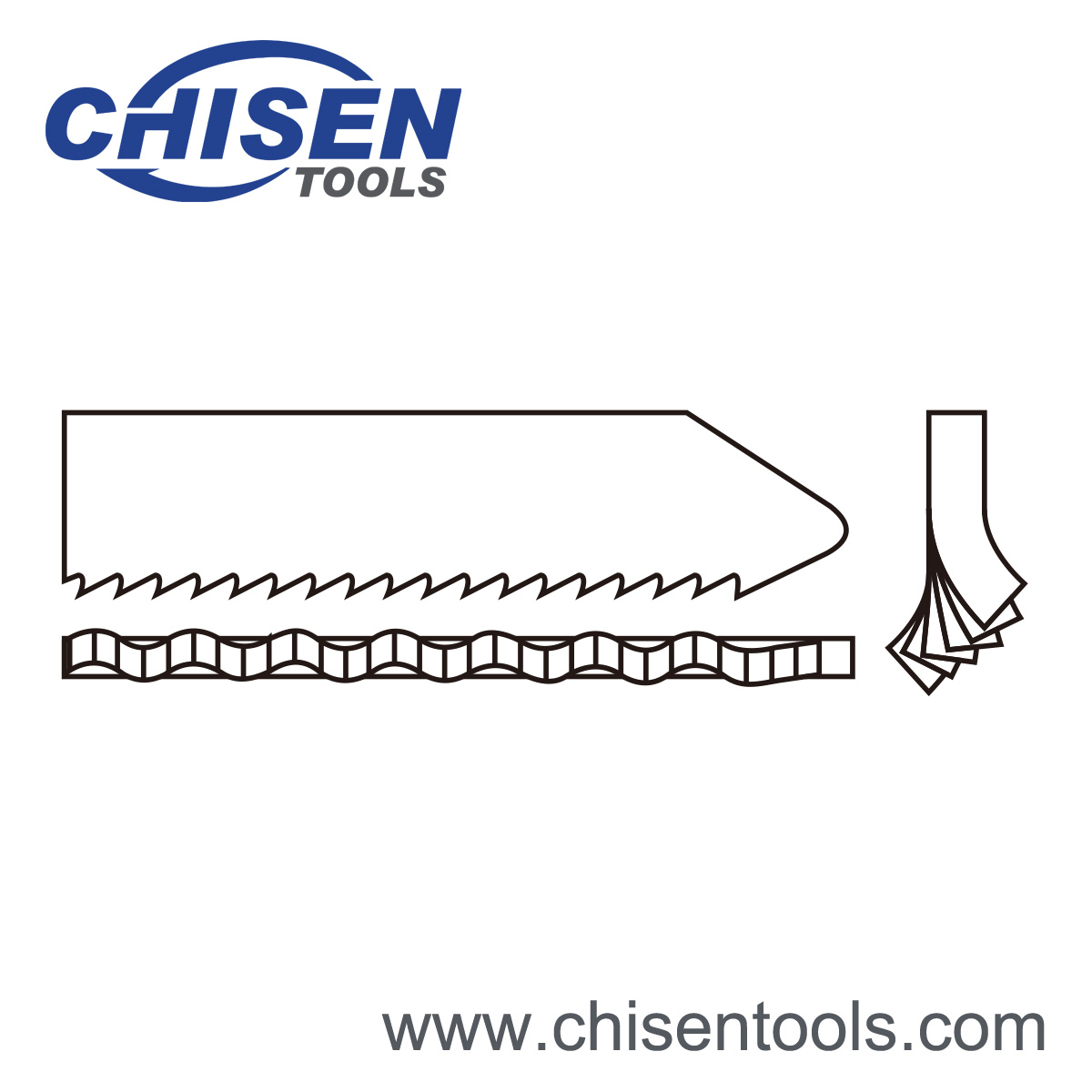

MILLED & WAVY SET TEETH

Wavy set toothing for fine and clean cuts. Suitable for fine straight cuts into plywood, soft steel, aluminium, non-ferrous metals and plastic.

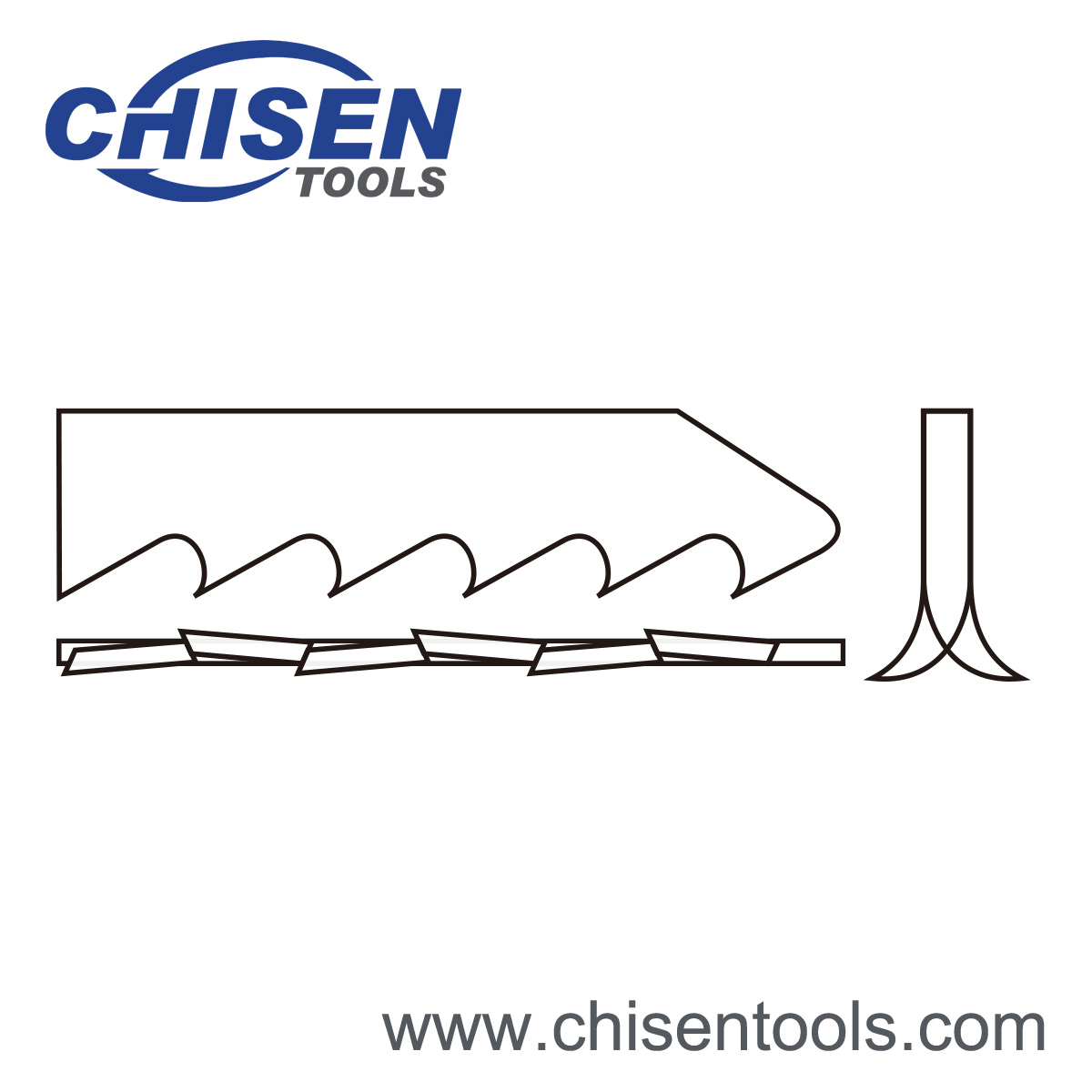

GROUND & SIDE SET TEETH

Side set, diagonally sharpened toothing for rough quick cuts. Best for quick cuts in wood.

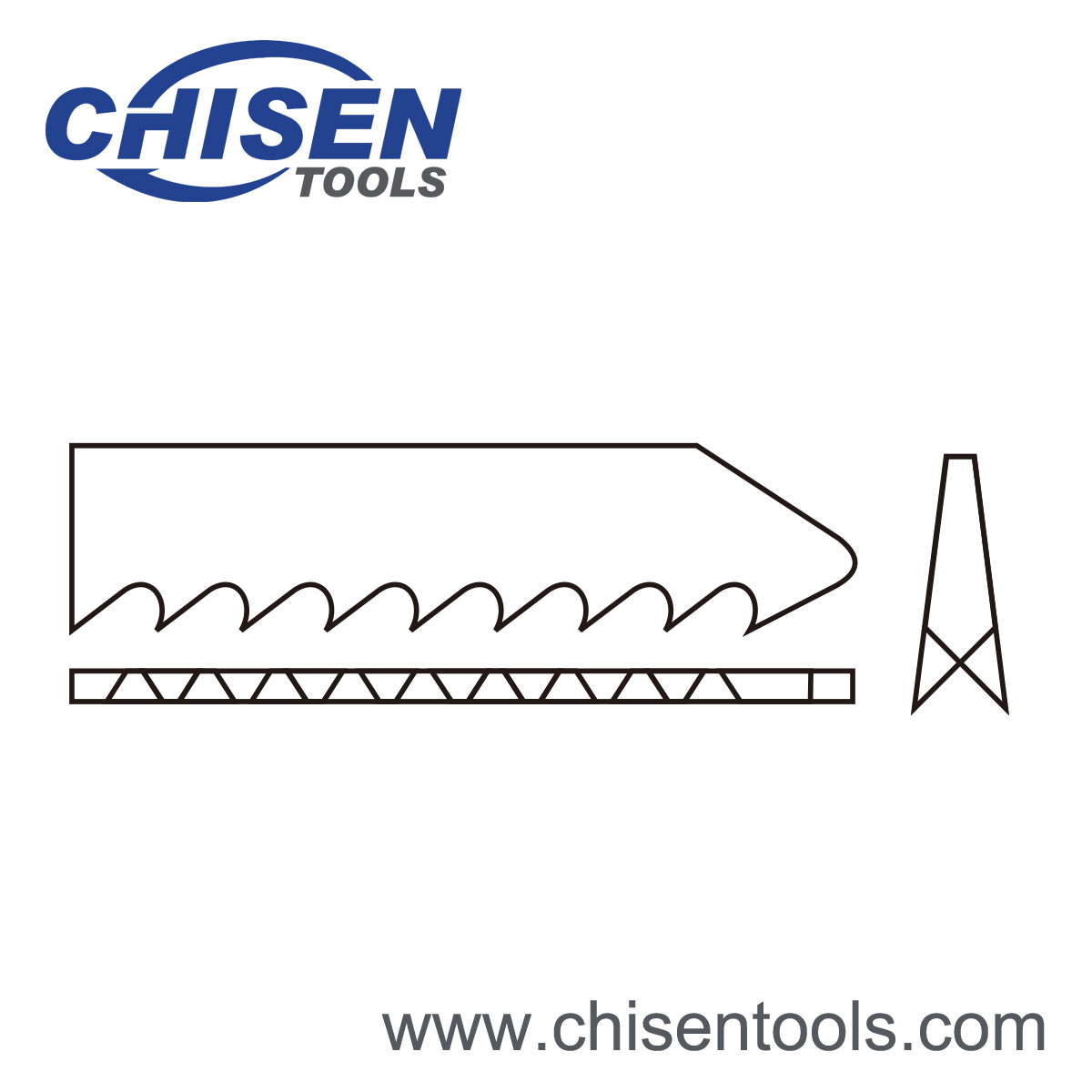

GROUND & TAPER GROUND TEETH

This geometric attribute creates fine, clean and precise cuts in wood and plastic. Conically ground blade, teeth diagonally sharpened toothing for precise clean cuts.
